Why Choose Skid-Mounted Substation for Solar Projects in South America?

TAILI Electric has been at the forefront of designing customized skid-mounted substation solutions for international solar projects, with capacities reaching up to 3,200 kVA. This article explores why this open-frame design outperforms traditional enclosed KIOSK and compact substations, particularly in the demanding desert environments of South America.

What Is a Skid-Mounted Substation?

A skid-mounted substation is a prefabricated power distribution unit where all major components—medium-voltage switchgear, transformer, and low-voltage distribution panels—are integrated onto a single steel base frame.

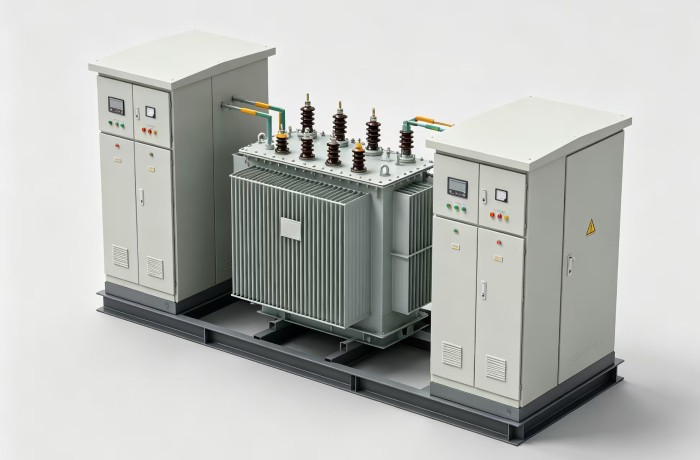

TAILI Electric's customized skid-mounted substation features a distinctive open configuration: the oil-immersed transformer sits exposed in the center, with independent high-voltage and low-voltage/metering cabinets on either side—all mounted on a unified steel skid.

This design philosophy stands in stark contrast to enclosed KIOSK or compact substations, where all equipment is housed within a metal enclosure.

Why the Open-Frame Design? Three Key Advantages

1. Superior Heat Dissipation in Desert Conditions

Solar projects across South America—from the Atacama Desert in Chile to the high-altitude plains of Argentina—face extreme temperatures and intense solar radiation.

In a skid-mounted substation, the transformer radiator is directly exposed to ambient air. This natural convection cooling delivers:

No additional cooling fans required—eliminating a common failure point No risk of internal overheating that would force transformer de-rating Optimal thermal performance even during peak midday conditions

In contrast, enclosed KIOSK substations trap heat within their metal housings. In desert environments, internal temperatures can soar well above ambient, forcing transformers to operate at reduced capacity—a costly compromise for any solar farm.

2. Simplified Installation and Maintenance

The skid-mounted substation is fully wired and tested at the factory. On-site installation requires only:

Connecting external cables Placing the unit on a prepared foundation

The modular, open design means the transformer and switchgear remain independently accessible. Maintenance crews can service individual components without wrestling with bulky enclosure doors or disassembling the entire structure.

3. Alignment with Local Grid Standards

This is perhaps the most compelling advantage: the open-frame skid-mounted substation has become the de facto standard for solar projects across South America.

Countries including:

Chile

Peru

Argentina

Honduras

Venezuela

...

have widely adopted this configuration for photovoltaic installations. Local utilities and grid operators are familiar with the design, inspection protocols, and acceptance criteria. Choosing a skid-mounted substation significantly streamlines the grid-connection approval

process.

TAILI Electric's Skid Solutions: Two Shipping Options

Delivering large electrical equipment to remote project sites across South America presents unique logistical challenges. TAILI Electric offers two shipping configurations for its skid-mounted substation, each optimized for different project scales and logistics requirements.

Option 1: Integrated One-Piece Skid

Structure: The high-voltage cabinet, transformer, and low-voltage cabinet are all welded onto a single steel base. All internal wiring is completed at the factory.

Advantages: Minimal on-site installation work—drop, connect, and energize

Fixed equipment positions eliminate the risk of internal copper busbars or cables shifting during ocean transit

Highest reliability for critical applications

Best suited for: Capacities up to 800 kVA

where the complete assembly can be shipped as a single unit.

Consideration: Higher shipping costs due to the larger overall footprint.

Option 2: Bolted Split-Type Skid

Structure: The base is divided into three segments—high-voltage section, transformer section, and low-voltage section. Equipment between sections connects using pre-fabricated flexible copper busbars or flexible cables.

Units are packed separately at the factory and shipped in individual crates. On-site, the sections are bolted together and the pre-fabricated flexible connections are mated.

1，Advantages:Each section fits inside a standard 40-foot HQ container—no oversized shipping required

2，Significantly reduced ocean freight costs with more reliable vessel scheduling

3，No oversize permitting required for domestic road transport in China

4，More flexible local transport to the final project site

5，Reduced risk of damage—radiators and porcelain insulators receive dedicated protective packaging

6，Important note: Only the base is mechanically split. All electrical connections use pre-fabricated flexible connectors, minimizing on-site wiring work to the absolute minimum.

Common Packaging Requirements for All Shipments

Regardless of which shipping option is selected, TAILI Electric follows rigorous packaging protocols:

1，Integrated skid shipments: The base must be welded with standard container lifting and lashing

points, with steel wire ropes securing the equipment inside the container

2，Transformer radiators and porcelain insulators: Receive specialized anti-collision and

salt-fog/rain protection for ocean transit

3，High and low-voltage switchgear: Fully sealed in plastic for waterproofing and dust

protection during shipping and site storage

Application Scenarios

TAILI Electric's customized skid-mounted substation solutions are deployed across diverse applications: Photovoltaic Solar Farms (Primary Application) The majority of TAILI's skid-mounted substation units serve as step-up transformers for solar PV plants. Typical configurations include:

Mining and Industrial Projects

Beyond solar, the skid-mounted substation is also widely used in mining operations across Chile and Peru, as well as general industrial facilities requiring reliable, rapid-deployment power distribution.

Conclusion

The skid-mounted substation has earned its position as the preferred solution for solar projects across South America through a combination of practical advantages:

1，Superior heat dissipation in desert environments—no cooling fans, no de-rating

2，Streamlined installation and maintenance—factory-wired, independently accessible components

3，Alignment with local grid standards—smoother approvals, faster project commissioning

4，Flexible shipping options—one-piece for smaller projects, split-type for larger installations with logistics constraints

TAILI Electric brings years of experiencein designing and manufacturing customized skid-mounted substation solutions for international markets. With capacities up to 3,200 kVA and voltage configurations tailored to specific country requirements, TAILI delivers turnkey power distribution that performs reliably in the world's most challenging environments.

For your next solar project in South America, choose the solution that local utilities trust—choose the skid-mounted substation from TAILI Electric.
