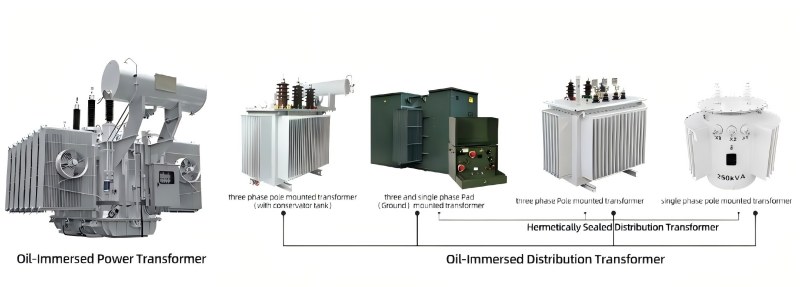

Oil-Immersed Type Transformer
TAILI is an oil-immersed type transformer manufacturer and supplier. Our products are power transformers in which the iron core and windings (coils) are completely immersed in specially formulated insulating oil (transformer oil), with the oil serving as the main insulation and cooling medium.
Main structural components:
1. Transformer body
Core: A magnetic path formed by stacking silicon steel sheets, grounded.
Winding: High and low voltage coils made of copper or aluminum wires, the core component for generating electromagnetic conversion.
2. Oil tank and insulating oil
Oil tank: Welded with steel plates, capable of holding the transformer body and insulating oil, requiring sealing.
Insulating oil: Usually mineral oil. Provides insulation, heat dissipation, and arc extinguishing functions.
3. Cooling system
Relying on the natural convection of oil or forced circulation, the heat is transported from the interior to the heat dissipation devices in the oil tank.
Common cooling methods:
· ONAN (oil-immersed self-cooling): Heat dissipation through natural convection of oil and air (box walls or heat dissipation fins). Suitable for small and medium-sized transformers.
· ONAF (oil-immersed air-cooling): Install fans on the heat dissipation devices to force air cooling. Increases capacity.
· OFAF (strong oil air-cooling): Use oil pumps to force oil circulation and strengthen forced air cooling. Used for large transformers.
· OFWF (strong oil water-cooling): Use oil pumps to force oil circulation and cool the hot oil through water coolers. Forged transformers or areas with sufficient water supply.
4. Protection and monitoring system:
· Oil reservoir (oil pillow): Adjusts the volume of oil according to temperature changes, reduces the contact area between oil and air, and delays oil aging.
· Absorber (breather): Contains silica gel, absorbing moisture from the air entering the oil reservoir.
· Gas relay (gas relay): Installed on the oil pipe, when a minor fault occurs internally or a severe fault causes oil flow surging, it sends a signal or trips. The most important non-electrical protection.
· Explosion-proof tube (pressure relief valve): When the internal pressure increases sharply, breaks the explosion-proof membrane or opens the valve to release pressure, preventing the oil tank from exploding.
· Thermometer: Monitors the top oil temperature.
· Oil level indicator: Indicates the oil level in the oil reservoir.
Compared with dry-type transformers, the advantages of oil-immersed transformers are:
1. Larger capacity and higher voltage level
2. High heat dissipation efficiency and strong overload capacity
3. Long insulation life and high reliability
4. Good economic performance
5. Relatively lower noise level
6. Mature maintenance technology
When to choose an oil immersed transformer?
1. High voltage level (above 35kV).
2. Large capacity requirement (more than 2000kVA).
3. Installed outdoors or in independent substations, with good fire isolation conditions.
4. Sensitive to initial investment cost, and with sufficient operation and maintenance capabilities.
5. Outdoor scenarios with strict requirements for operating noise.
- View as
3-Phase Oil Immersed Distribution Transformer
The 3-Phase Oil Immersed Distribution Transformers produced by Taili factory are transformers that utilize insulating oil as both the insulation and cooling medium. It can be used to reduce the medium voltage in the power system to the low voltage suitable for user consumption.
3-Phase Oil Immersed Type Power Transformer
The 3-Phase Oil Immersed Type Power Transformer from China supplier TAILI are produced for AC power transmission system, the voltage can be designed up to 66KV, and the capacity designed from 25KVA-3.15MVA, we can also customized for customer’s different technical requirements. The transformer has performance with high efficiency, low loss and maintenance free.
1-Phase Oil Immersed Type Pole Mounted Transformer
As one of the leading manufacturers in the production of low and medium voltage power equipment, Taili's 1-Phase Oil Immersed Type Pole Mounted Transformer is a power device that reduces 10kv medium voltage electricity to 220v household voltage. It is usually installed on utility poles and uses insulating oil internally for heat dissipation and insulation. It provides single-phase alternating current to residential areas, rural areas, and other regions.
3-Phase Oil Immersed Type Step up Transformer for Solar Plants
This design of 3-Phase Oil Immersed Type Step up Transformer for Solar Plants from Taili factory is critical component in solar energy distribution system. It plays an important role from non-renewable sources, its step up voltage which produced by the solar inverters, and output power of photovoltaic power generation system which non-continuous sunshine intensity and duration makes it necessary to bare the constant loading and dampened reaction process.
Oil Immersed Transformer with OLTC
As the manufacturer/supplier of oil immersed transformer, Taili’s oil immersed transformer with OLTC is an oil-immersed type of transformer that can adjust its capacity without cutting off the power supply. It fundamentally solves the problem of excessive power consumption of traditional variable voltage transformers when operating under light loads
Oil Immersed Amorphous Alloy Core Distribution Transformer
As the leading Chinese factory of transformer , Taili’s oil immersed amorphous alloy core distribution transformer is a highly efficient and energy-saving transformer that uses amorphous alloy as the core material and immerses it in insulating oil for cooling and insulation. It has significant advantages over traditional silicon steel sheet transformers in terms of energy efficiency, environmental protection and operational economy.
As a reliable Oil-Immersed Type Transformer manufacturer and supplier in China, we have our factory. If you want to buy quality and durable products, please contact us.
