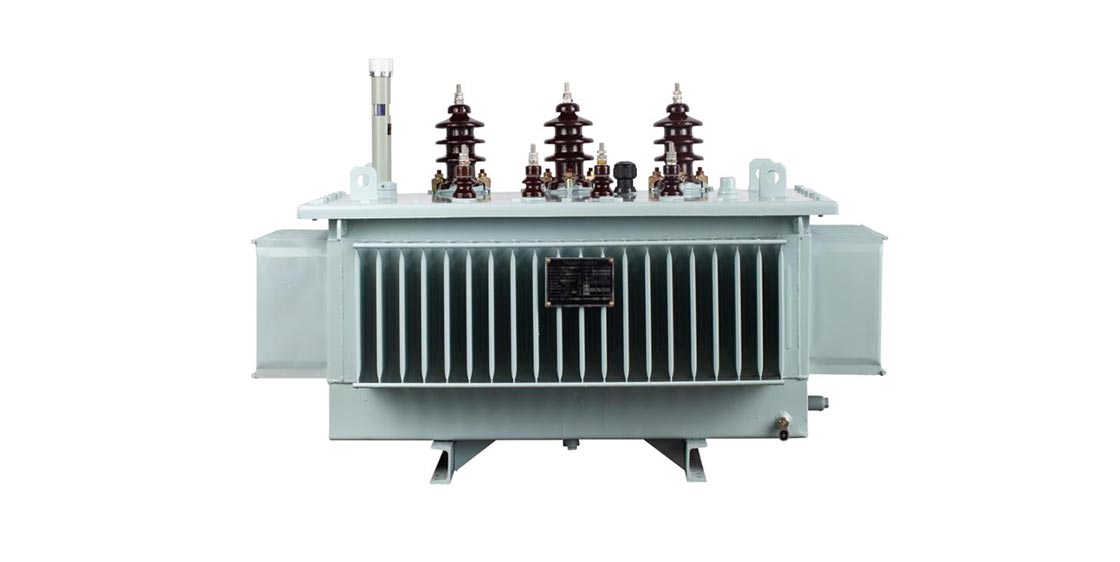

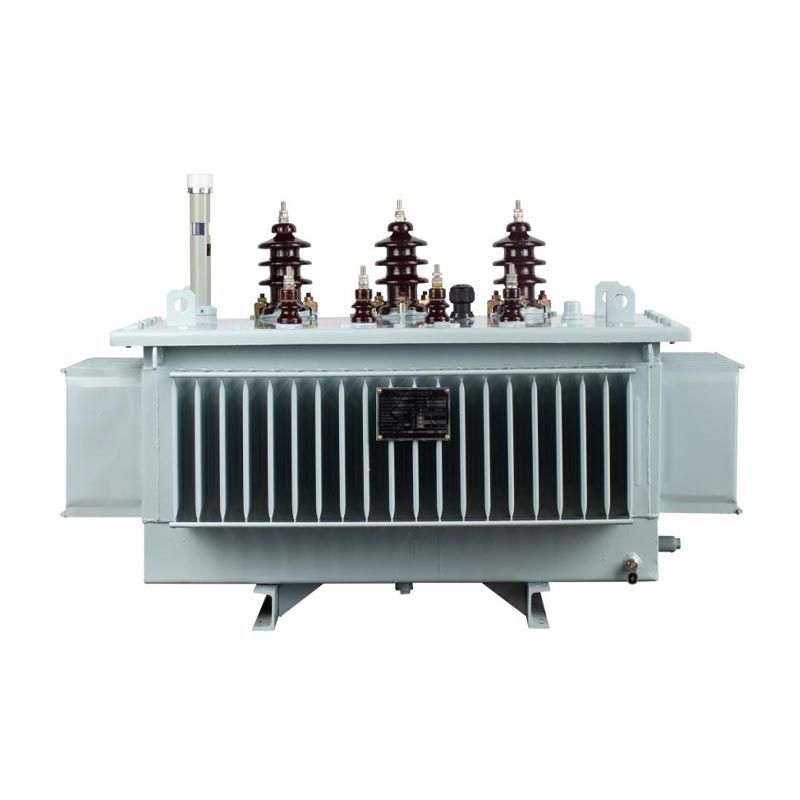

Oil Immersed Amorphous Alloy Core Distribution Transformer
As the leading Chinese factory of transformer , Taili’s oil immersed amorphous alloy core distribution transformer is a highly efficient and energy-saving transformer that uses amorphous alloy as the core material and immerses it in insulating oil for cooling and insulation. It has significant advantages over traditional silicon steel sheet transformers in terms of energy efficiency, environmental protection and operational economy.
As a transformer factory with over 20 years of production experience, we have a well-established R&D team and a complete production line, which can meet various customized requirements of our customers.
Features:
1. Extremely low no-load loss: This is the most prominent advantage of amorphous alloy transformers. Their no-load loss is 60%-80% lower than that of traditional silicon steel sheet transformers of the same capacity.
2. High efficiency and energy saving, good operational economy: Distribution transformers are in a light-load or no-load operating state for most of the year. No-load loss is a continuous "standby energy consumption", so reducing no-load loss has a significant impact on energy conservation throughout the entire life cycle. Although the manufacturing cost is higher, the saved electricity costs can usually be recovered within 3-8 years.
3. Advantages of oil-immersed type: Mature structure, reliable, good heat dissipation performance, strong overload capacity, convenient maintenance, and lower cost compared to dry-type amorphous alloy transformers.
Standard specification:
1. Standard : IEC60076/ IEEE
2. Capacity: up to 2500kVA
3. Primary voltage: up to 24kV
4. Secondary voltage: 0.4kV
5. Frequency: 50/60Hz
6. Tap range: ±5% ;±2x2.5%
Main application scenarios:
Urban and residential distribution networks: Used in the distribution link at the end of the power grid, it can effectively reduce line losses and improve power supply quality.
Commercial and public buildings: Such as shopping centers, office buildings, hospitals, and other high-energy consumption places, to save electricity costs.
Transportation hubs: Airports, subways, railway stations, etc., to ensure power supply reliability.
Industrial and mining: Factory substations, especially in places sensitive to harmonics.
Places with high fire protection requirements: Oil-immersed amorphous alloy transformers can replace dry-type transformers in these sensitive areas.
Insulation level :
| Voltage level(kV) | Highest electrical equipment RMS voltage(kV) | Rated frequency withstand voltage RMS(kV/min) | Rated lightning impulse withstand voltage full wave peak(kV) |
| ≤1 | ≤1 | 5 | -- |
| 6 | 6.9 | 25 | 75 |
| 10 | 11.5 | 35 | 95 |
| 20 | 23 | 55 | 125 |
Production：

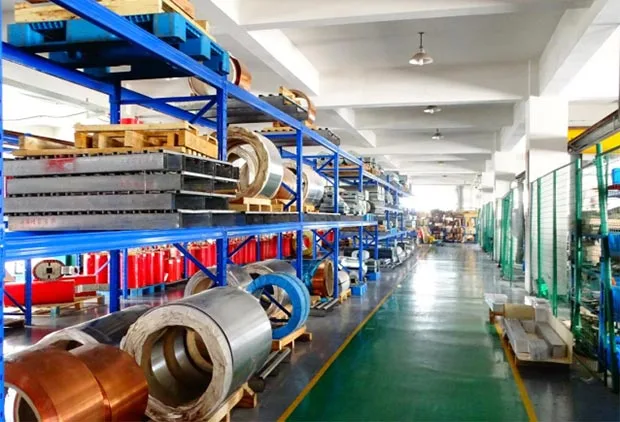

Raw material

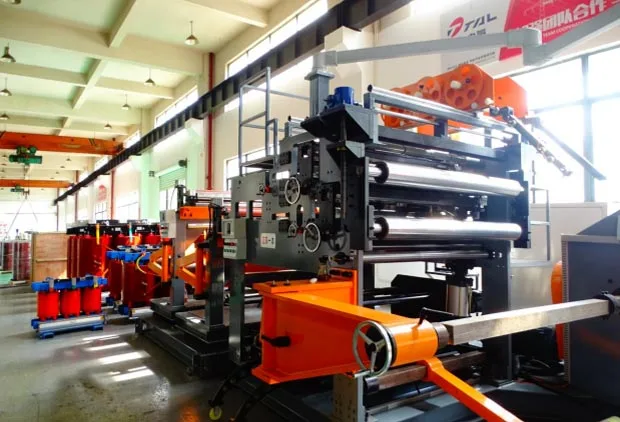

Winding

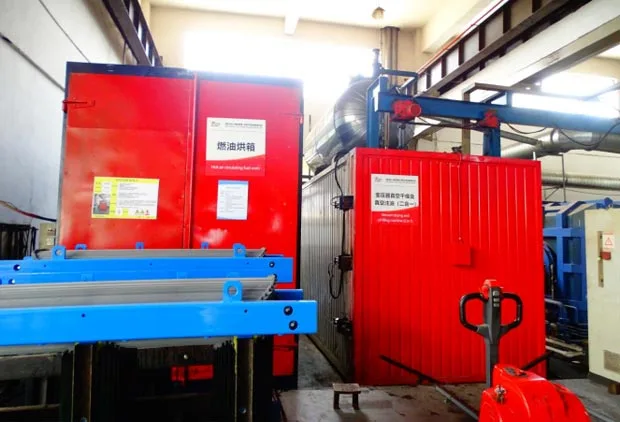

Vacuum drying and vacuum oil filling(2 in 1 )

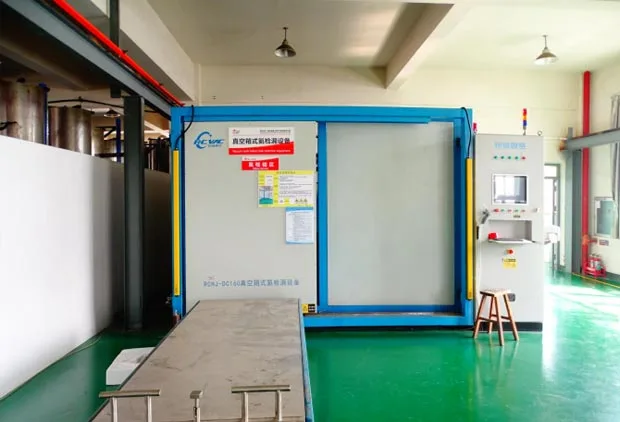

Leak Detector
Please provide the following information, and we will be able to offer better services.
| Product application scenarios | |
| Product technical parameters |
