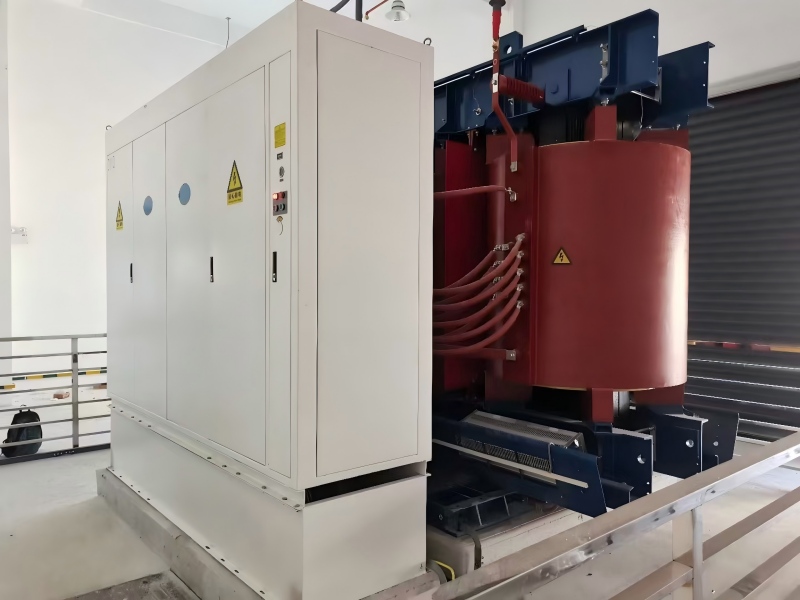

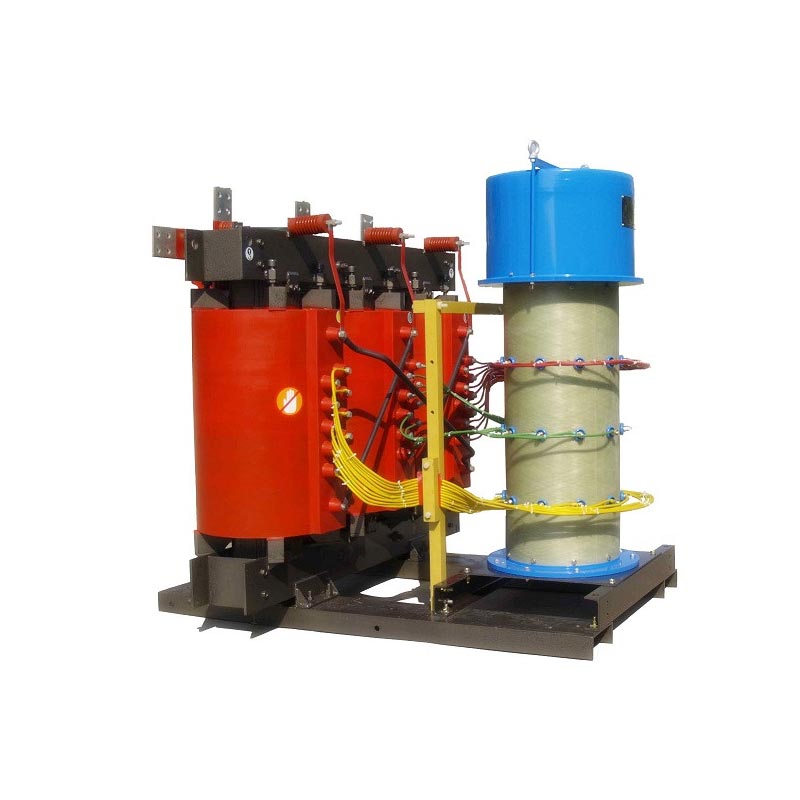

Epoxy Resin Cast Dry Type Power Transformer with OLTC

TAILI is a professional manufacturer and supplier of Epoxy Resin Cast Dry Type Power Transformer with OLTC. This product, with high quality and high durability, can bring you benefits:

1. Voltage stability: It can automatically maintain the output voltage within the allowable range, ensuring the normal operation of electrical equipment.
2. Power supply continuity: The voltage regulation process does not require power outage, making it particularly suitable for users with high requirements for power supply continuity (such as data centers, precision manufacturing, hospitals, etc.).
3. Improving grid quality: It can compensate for voltage drops caused by load fluctuations, and is an important means for reactive power compensation and voltage control in the power grid.
4. Flexible and intelligent: It can be connected to an automation system to achieve remote monitoring and automatic control.

Due to these advantages, the transformers are widely used in:

1. Data center: Servers are extremely sensitive to voltage fluctuations.
2. Hospital operating rooms, ICU: Any momentary power outage could endanger life.
3. Semiconductor, LCD panel manufacturing plants: The production process has strict requirements for voltage stability.
4. Financial center: Ensure that the trading system is never interrupted.
5. Important laboratories and research institutions

Standard specification

1. Applicable specification: IEC 60076 / IEEE
2. Rated capacity : up to 4MVA
3. Primary voltage: 35kV
4. Secondary voltage: 380/400/415V or customized
5. Winding materials: Copper/ Aluminum
6. Temperature rise: 65 °C/100℃ or customized
7. Cooling method: ONAN/ONAF
8. Frequency: 50Hz/60Hz
9. Taps voltage: ±5% / ±2x2.5% or customized
10. vector group: Dyn11 / Yyn0 / Yd11

Please provide the following information, and we will be able to offer better services.

Test

Routine tests:

· Measurement of voltage ratio and check of phase-displacement
· Insulation resistance test
· Measurement of winding resistance
· Voltage withstand test
· Induce over-voltage withstand test
· Measurement of no-load loss and exciting current
· Measurement of short circuit impedance and Load loss
· Measurement of voltage ratio and check of phase-displacement
· Insulation resistance test
· Measurement of winding resistance
· Voltage withstand test
· Induce over-voltage withstand test
· Measurement of no-load loss and exciting current
· Measurement of short circuit impedance and Load loss

Type tests:

· Lighting impulse test
· Temperature rise test
