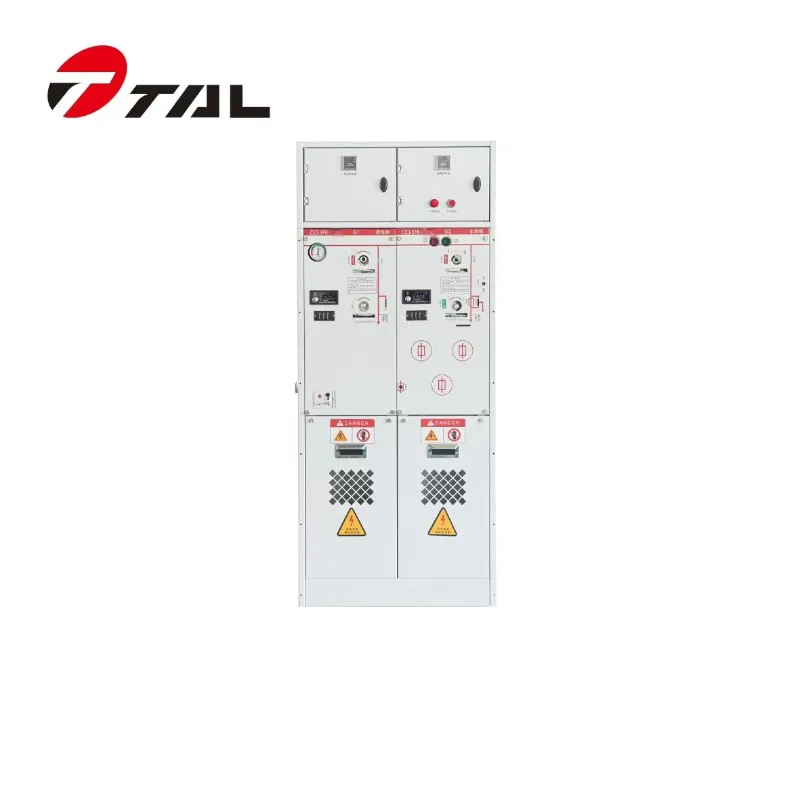

Why 36kV SF6 Gas Insulated Switchgear Dominates Modern High-Reliability Power Distribution Projects?

With the rapid upgrade of urban power grids, industrial park power distribution, and new energy power stations, modern power projects are placing higher demands on power equipment safety, operational stability, environmental adaptability, and space utilization. Traditional air-insulated switchgears for 36kV systems are limited by large installation space, poor dust and moisture resistance, and unstable insulation performance in harsh environments, which can no longer fully adapt to high-standard power construction needs. As an upgraded medium-voltage power distribution device, the 36kV SF6 Gas Insulated Switchgear effectively solves the inherent pain points of conventional switchgear. Taili, as a professional manufacturer of medium and low voltage switch equipment, has launched a high-performance 36kV SF6 gas insulated switchgear, widely recognized for modern high-reliability power distribution engineering projects.

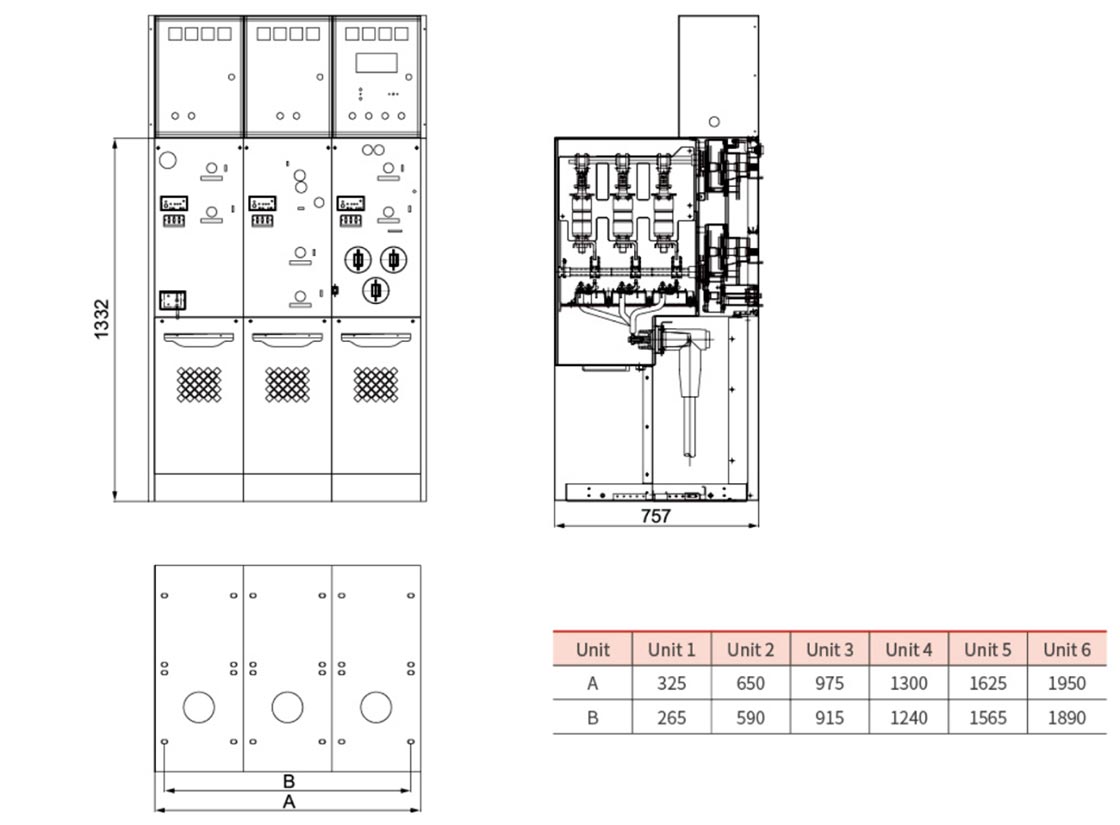

Compact Sealed Structure Breaks Space Limitations of Traditional 36kV Equipment

Highly integrated sealed gas box:

Adopting advanced sealed gas tank technology, the internal conductive components are completely isolated from the external environment, greatly reducing the insulation distance between phases.

Ultra-compact overall layout:

Compared with traditional air-insulated switchgears, the floor area and overall volume are significantly reduced, perfectly fitting compact box-type substations, urban underground power distribution rooms, and space-limited industrial scenarios.

Flexible modular design:

Supporting multiple unit types such as C, F, and V, it can flexibly match load break, isolation grounding, and VCB vacuum circuit breaker configurations to meet diverse project design requirements.

SF6 Gas Insulation Ensures Ultra-High Operational Reliability

Superior dielectric insulation performance:

The insulating properties of SF6 gas far exceed air, stably withstanding 40.5kV-level industrial voltage, and meeting strict phase-to-phase and port power frequency withstand voltage and lightning impulse withstand voltage standards.

Efficient arc extinguishing capability:

It quickly extinguishes instantaneous arcs during switching and short-circuit faults, effectively avoiding equipment burnout and power failure accidents caused by arc ablation.

Ultra-low gas leakage rate:

The professional sealing process ensures the annual air leakage rate is controlled within 0.01%, maintaining long-term stable internal gas pressure and consistent insulation performance without frequent inflation and maintenance.

Strong Environmental Adaptability for Harsh Working Conditions

High-level protection performance:

The internal gas box reaches IP67 protection grade, and the overall enclosure meets IP4X standards, completely preventing dust, rainwater, and moisture from entering the equipment.

Anti-corrosion and anti-aging advantages:

The fully sealed structure isolates external corrosive media, avoiding metal component oxidation and insulation aging, and greatly extending equipment service life.

Stable all-weather operation:

Free from environmental temperature and humidity changes, it maintains consistent operating performance in extreme weather and harsh industrial environments, reducing unexpected power outage risks.

Excellent Electrical Parameters Meet High-Standard Power Grid Requirements

Diversified current specification coverage:

Supporting 630A and 1250A rated current configurations, matching conventional and large-current power distribution scenarios of 36kV systems.

Strong short-circuit resistance:

It withstands 20/25kA four-second short-time withstand current and 50/63kA short-circuit closing peak current, ensuring stable coping with grid instantaneous fault impact.

Long mechanical service life:

The mechanical life of core components reaches up to 10,000 times, with standardized operating sequences, adapting to frequent switching operation demands of modern intelligent power grids.

Low loop resistance design:

The loop resistance is controlled within ≤300Ω, effectively reducing operating heat generation and power loss, realizing energy-saving and efficient operation.

Taili Professional Manufacturing Ensures Stable Batch Quality

Conclusion

Against the background of intelligent and refined upgrading of modern power distribution systems, traditional air-insulated switchgears can no longer meet the high-standard requirements of harsh environments, limited space, and high-reliability power supply. With compact structure, excellent insulation performance, strong environmental adaptability, and superior electrical parameters, Taili 36kV SF6 Gas Insulated Switchgear has become the mainstream preferred equipment for 36kV high-reliability power distribution projects. It effectively reduces long-term operation and maintenance costs for power projects and provides solid equipment guarantee for safe and stable operation of modern power grids.
