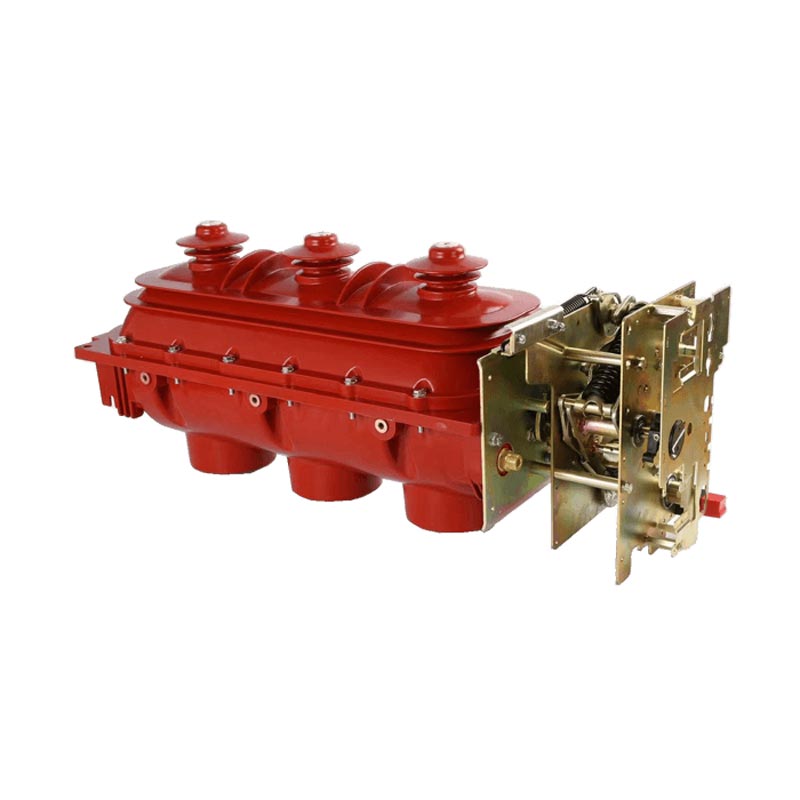

Indoor SF6 LBS

Taili is a China Indoor SF6 LBS supplier. This product integrates the functions of a load switch and an isolating switch, and usually comes with fuse protection, forming a compact combined electrical apparatus.

1.Altitude: ≤2000m

2.Ambient temperature: -45°C ~+45°C

3.Earthquake intensity: ≤8 degree

4.Relative humidity: Daily averages ≤95%, Monthly average≤90%

Advantages:

1. Compact structure, small size.

2. High safety and reliability.

3. No maintenance required.

4. Excellent arc extinguishing performance.

5. Easy to operate.

Suitable for switchgears in medium-voltage secondary distribution networks, such as in large shopping malls, residential areas, industrial and mining enterprises, and other distribution sites.

Main application fields：

1. Urban distribution network: Indoor SF6 LBS is the main protection or branch switch in distribution substations and switchgear in urban residential areas, subways, airports, etc.

2. Industrial and mining enterprises: To provide reliable power distribution and switching for production lines and equipment.

3. Large public buildings: Shopping malls, hospitals, sports venues, etc., which require efficient and safe power distribution.

4. Substations and ring main units: As the core components of fully insulated or semi-insulated ring main units/multi-circuit distribution cabinets, achieving compact design.

5. Combined with fuses: Forming load switch-fuse combination electrical appliances, economically and efficiently protecting distribution transformers with a capacity of 1250 kVA and below.
