Why Is the Heat Shrink Cable Termination Kit the Ultimate Cost-Saving Protection for Medium-Voltage Power Grids?

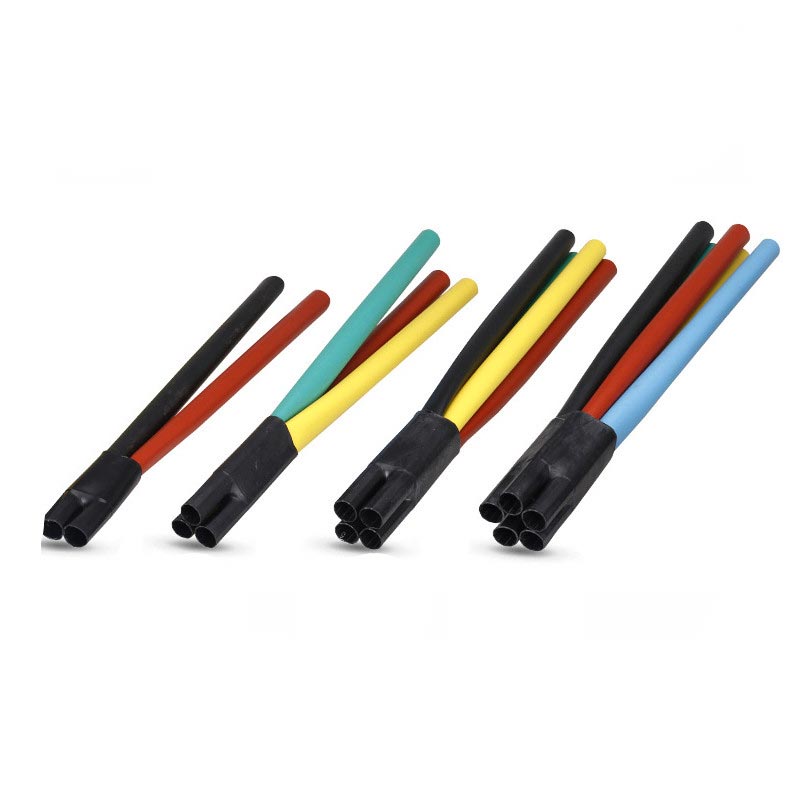

Moisture ingress and electrical tracking at medium-voltage cable ends are primary causes of localized dielectric breakdown and unexpected sub-station power outages. The Heat Shrink Cable Termination Kit engineered by Taili solves these structural vulnerabilities using high-performance, cross-linked polyolefin polymers lined with heavy-duty hot-melt adhesives. Delivering complete waterproof sealing, strong UV stability, and robust impact protection for XLPE lines up to 35kV, this certified kit offers identical mechanical reliability to cold-shrink products while cutting upfront procurement costs by up to 40% for large-scale utility installations.

1. Basic Introduction to Medium-Voltage Cable Joint Protection

Electrical distribution networks demand absolute mechanical protection at every single power junction, switchboard exit, and transformer connection terminal. Stripping back medium-voltage cables during installation creates high electrical stress concentration zones that can easily destabilize if left unprotected against environmental variables. Outdoor terminal locations are continuously exposed to intense humidity, rain, dust, and atmospheric chemical exposure.

Deploying a heavy-duty Heat Shrink Cable Termination Kit provides the exact environmental barrier required to maintain complete electrical insulation stability. Utilizing premium polymer shape-memory technology, the components contract uniformly under standard gas-torch thermal application to form a tight, unyielding seal directly around the cable jacket. This effectively prevents moisture ingress and flashover accidents across indoor switchgear panels and outdoor pole-mounted distribution assets alike.

2. Full Technical Specifications and Core Sizing Matrix

To simplify project procurement and ensure precise engineering alignment during international state grid bidding procedures, all kits are manufactured to strict sizing specifications. The comprehensive technical parameters of the Heat Shrink Cable Termination Kit are organized below for precise design referencing:

• Voltage Capability Range: Configurable from 1kV, 11kV, 24kV, up to 36kV applications.

• Core Configurations: Available for single-core (1-core) and multi-core (3-core, 4-core, 5-core) power setups.

• Low-Voltage 1kV Cross-Section Capacities: Accommodates cable diameters from 10-16mm² up to large 300mm² lines.

• Medium-Voltage 11kV to 36kV Cross-Section Capacities: Engineered for cross-sections from 25-50mm² through 300-400mm² conductors.

• Material Integrity: Flame-retardant cross-linked polyolefin pre-coated with waterproof hot-melt structural glue.

• International Certifications: Fully tested and approved under CE, ASTA, TUV, SGS, and ISO 9001 quality frameworks.

3. Five Core Structural and Financial Advantages

• Superior Mechanical and Puncture Resilience: The overall wall thickness increases significantly after the thermal shrinking process is completed, giving the underlying cable exceptional resistance to impact, localized pressure, and physical surface abrasion.

• Flawless Waterproof and Anti-Tracking Sealing: The inner layers of the critical breakout boots and polyolefin tubes are pre-applied with high-viscosity hot-melt adhesive. When heated, this specialized glue melts and flows into any surface micro-voids, creating an airtight, moisture-proof seal along the cable sheath.

• Extended Service Life in Extreme Environments: Formulated with premium anti-aging and UV-stabilized additives, the outer polymer sleeve withstands severe weather cycles, heavy ozone exposure, and salt-spray corrosion without cracking or drying out.

• Excellent Dimensional Shrinkage Adaptability: The wide expansion and contraction ratio enables a single kit configuration to conform perfectly over a broad range of cable diameters, greatly reducing inventory costs and simplifying field storage for contractors.

• Exceptional Procurement Cost-Effectiveness: Compared to cold-shrink products of identical specifications, this hot-shrink technology achieves the exact same insulation and sealing performance metrics while offering a much lower wholesale price point, helping projects maximize their budget efficiency.

4. Diverse Grid Deployment Scenarios

• Indoor Sub-station Switch cabinets: Ideal for small, enclosed spaces like indoor medium-voltage switchgear, distribution boxes, electricity meter panels, and commercial facility power rooms.

• Outdoor Overhead Distribution Lines: Engineered to withstand the elements on outdoor pole-mounted transformers, ring main units (RMUs), cable branch boxes, and elevated line junctions.

• Box-Type Sub-stations and Infrastructure Joints: Provides clean, long-term insulated terminations for modular utility sub-stations, industrial power connection hubs, and municipal underground line extensions requiring the specialized Heat Shrink Cable Termination Kit framework.

5. Taili Factory Production Infrastructure and Engineering Strength

Taili Electrical Co., Ltd. was established in 1988 in Wenzhou, China’s renowned electrical industry center, and has grown into a leading premier manufacturer specializing in complete power transmission solutions. Operating 4 modernized manufacturing facilities spanning a comprehensive asset layout, the group manages a workforce of over 300 employees, including 5 independent engineering R&D teams, 10 specialized quality inspectors, and 10 expert electrical testers.

Equipped with 8 automated production lines—including 6 specialized curing ovens, 10 advanced shearing machines, 30 precision winding stations, and 5 high-capacity vacuum annealing furnaces—our infrastructure maintains a stable monthly capacity of 500 oil-immersed transformers and 300 dry-type transformers alongside our extensive high-voltage switchgear and cable accessory divisions. Every Heat Shrink Cable Termination Kit is produced under rigid ISO 9001, ISO 14001, and OHSMS 18001 standards, allowing us to back our lines with a 2-to-3 year quality guarantee and a projected equipment service life of 20 to 30 years for global EPC projects across Southeast Asia, South America, the Middle East, and Africa.

6. FAQ

• Q1: What specific parameters does your factory need to provide a precise quotation?

A: To match your network layout perfectly, your procurement team should specify the exact system voltage level (1kV to 36kV), the cable conductor material (copper or aluminum), the cross-sectional area in square millimeters, the exact number of cable cores, and whether it will be deployed in an indoor or outdoor environment.

• Q2: Why is the heat-shrink method considered more cost-effective than cold-shrink kits?

A: The raw material formulation and manufacturing process for cross-linked polyolefin are inherently more cost-effective than liquid silicone rubber molding. This allows our termination kits to deliver the exact same electrical insulation and moisture-proofing values while drastically reducing project procurement budgets.

• Q3: How does the internal hot-melt adhesive behave during long-term field installation?

 A: The integrated hot-melt adhesive liquefies smoothly under torch heating, filling any microscopic gaps along the stripped cable layers. Once cooled, it cures into a solid, rubbery waterproof barrier that will not degrade, crack, or wash away under extreme thermal expansion or contraction cycles.

Summary and Cooperation Invitation

Eliminate grid installation failures while optimizing your engineering budget. Taili provides high-volume manufacturing of the certified Heat Shrink Cable Termination Kit to keep your power transmission lines fully sealed against moisture and voltage stress. Backed by 38 years of utility factory production, a 2-to-3 year quality guarantee, and full ASTA, TUV, and SGS type-test compliance, we are fully equipped to support international agents, EPC contractors, and State Grid bidding projects. Contact us today to submit your cross-sectional specifications, request technical material summaries, and receive a competitive, factory-direct wholesale quote.
