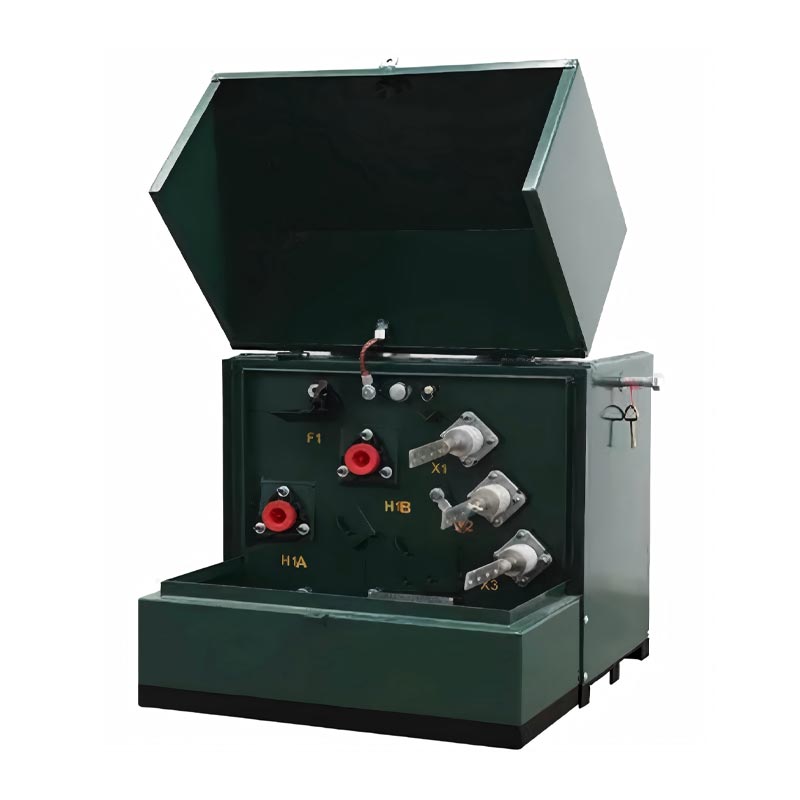

Single Phase Pad Mounted Transformer

Key Characteristics

Installation: Mounted on a concrete or composite pad at ground level, eliminating the need for utility poles or overhead lines.

Safety & Design: Features a "dead-front" design where all energized connections are enclosed and shielded, making Single Phase Pad Mounted Transformers safe for public areas like parks or sidewalks without additional fencing.

Ratings: Typically handle power capacities ranging from 10 kVA to 167 kVA (though some units reach up to 250–500 kVA).

Insulation: Most are liquid-filled, using mineral oil or fire-resistant vegetable-based fluids (like FR3) for cooling and insulation.

Applications

Residential Areas: Single phase pad mounted transformers can provide power to multiple homes in suburban or urban neighborhoods with underground utilities.

Light Commercial: Serving small retail shops, offices, and street lighting.

Remote Locations: Delivering power to rural farms or irrigation systems where 3-phase power is unavailable or unnecessary.

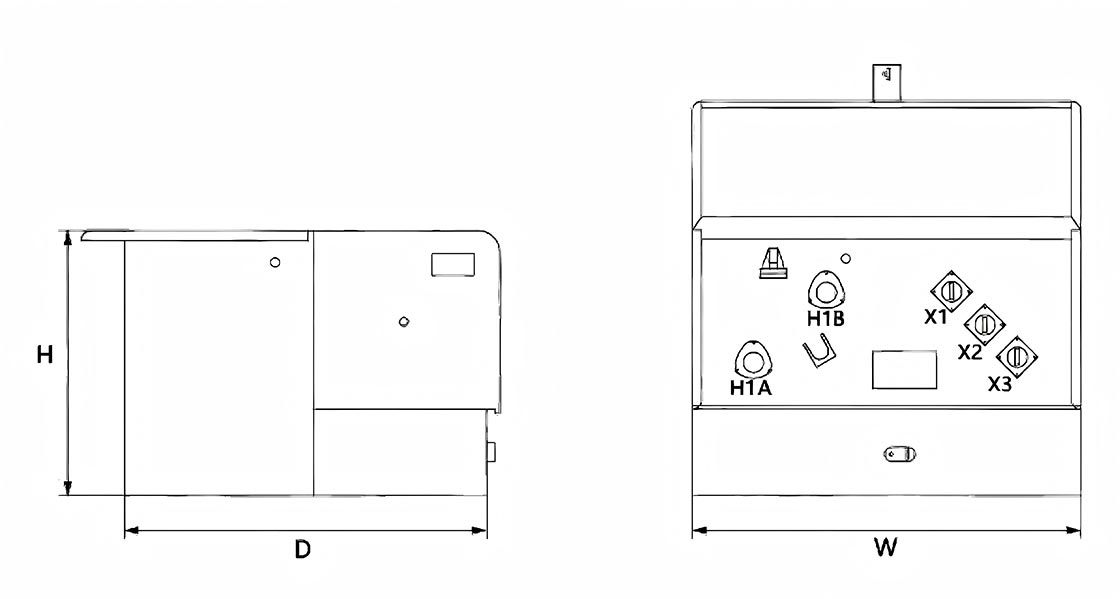

Outline for reference

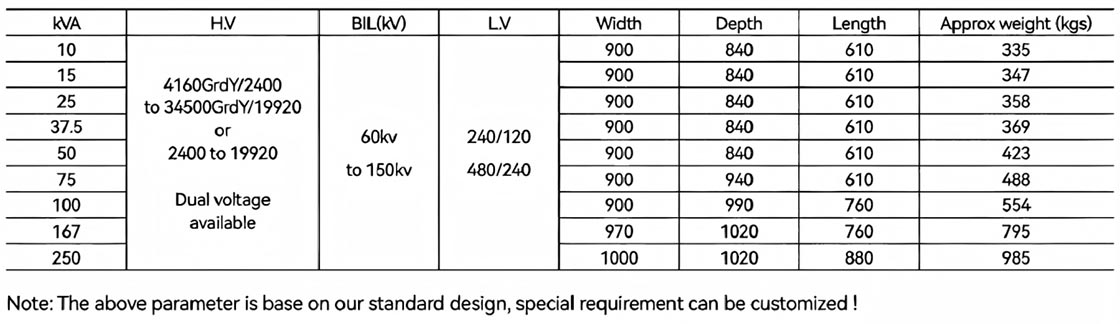

Rating and standard voltage for choosing

Please provide the following information, and we will be able to offer better services.
