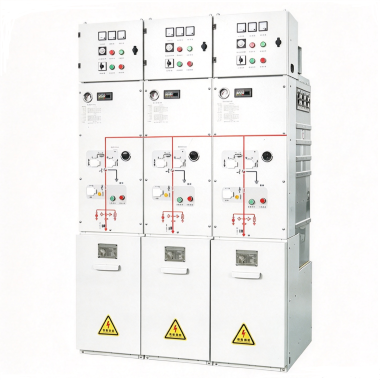

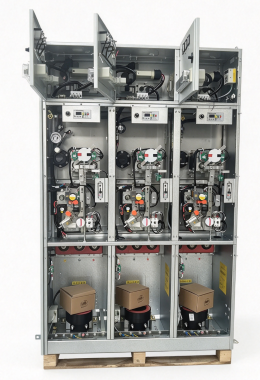

12kV SF6-FREE Gas-Insulated Switchgear
The TL-Air-12 series SF₆-Free gas-insulated AC metal-enclosed switchgear is designed for 12 kV medium-voltage power distribution systems. It uses dry air or dry nitrogen as the insulating medium and vacuum interrupters for current interruption, providing an alternative to conventional SF₆-insulated ......
The TL-Air-12 series SF₆-Free gas-insulated AC metal-enclosed switchgear is designed for 12 kV medium-voltage power distribution systems. It uses dry air or dry nitrogen as the insulating medium and vacuum interrupters for current interruption, providing an alternative to conventional SF₆-insulated switchgear.The high-voltage components are enclosed in a welded 304 stainless-steel gas tank. The sealed gas tank provides protection for the internal components against external environmental conditions, while the compact gas-insulated design helps reduce installation space.
The TL-Air-12 is available in circuit breaker and load switch configurations, with rated currents of 630 A and 1250 A. The switchgear incorporates a five-prevention interlocking system and supports flexible busbar expansion for different distribution arrangements.
The product is suitable for utility distribution, industrial power systems, renewable energy projects, commercial facilities and transformer substations where SF₆-Free medium-voltage switchgear is required.
Technical Data
General Parameters
Item
Unit
Circuit Breaker Cabinet
Load Switch Cabinet
Rated voltage
kV
12
12
Rated frequency
Hz
50 / 60
50 / 60
Rated current
A
630 / 1250
630 / 1250
Insulating medium
—
Dry air / Dry nitrogen
Dry air / Dry nitrogen
Interruption medium
—
Vacuum
—
Rated gas pressure at 20°C (gauge)
MPa
0.02
0.02
Minimum operating gas pressure
MPa
0
0
Item
Unit
Circuit Breaker Cabinet
Load Switch Cabinet
Rated voltage
kV
12
12
Rated frequency
Hz
50 / 60
50 / 60
Rated current
A
630 / 1250
630 / 1250
Insulating medium
—
Dry air / Dry nitrogen
Dry air / Dry nitrogen
Interruption medium
—
Vacuum
—
Rated gas pressure at 20°C (gauge)
MPa
0.02
0.02
Minimum operating gas pressure
MPa
0
0
Insulation Characteristics
|
Item |
Unit |
Circuit Breaker Cabinet |
Load Switch Cabinet |
|
Rated power-frequency withstand voltage, to ground and between phases |
kV |
42 |
42 |
|
Rated power-frequency withstand voltage, across the isolating distance |
kV |
48 |
48 |
|
Rated lightning impulse withstand voltage, to ground and between phases |
kV |
75 |
75 |
|
Rated lightning impulse withstand voltage, across the isolating distance |
kV |
85 |
85 |
Mechanical Endurance
|
Item |
Unit |
Circuit Breaker Cabinet |
Load Switch Cabinet |
|
Mechanical endurance of circuit breaker / load switch |
operations |
5000 |
5000 |
|
Mechanical endurance of disconnector |
operations |
3000 |
3000 |
|
Mechanical endurance of earthing switch |
operations |
3000 |
3000 |
|
Earthing switch closing operations |
operations |
5* |
5* |
Enclosure and Environmental Performance
|
Item |
Unit |
Circuit Breaker Cabinet |
Load Switch Cabinet |
|
Gas tank material |
— |
304 stainless steel |
304 stainless steel |
|
Gas tank ingress protection |
— |
IP67 |
IP67 |
|
Enclosure ingress protection |
— |
IP4X |
IP4X |
|
Annual gas leakage rate |
% |
≤0.01 |
≤0.01 |
|
Internal arc withstand |
kA / s |
20 / 0.5 (20 / 1) |
20 / 0.5 (20 / 1) |
|
Moisture content in gas tank |
ppm |
≤15* |
≤15* |
|
Main circuit resistance |
μΩ |
≤120 |
≤120 |
* Subject to the final product configuration and engineering confirmation.
Product Details

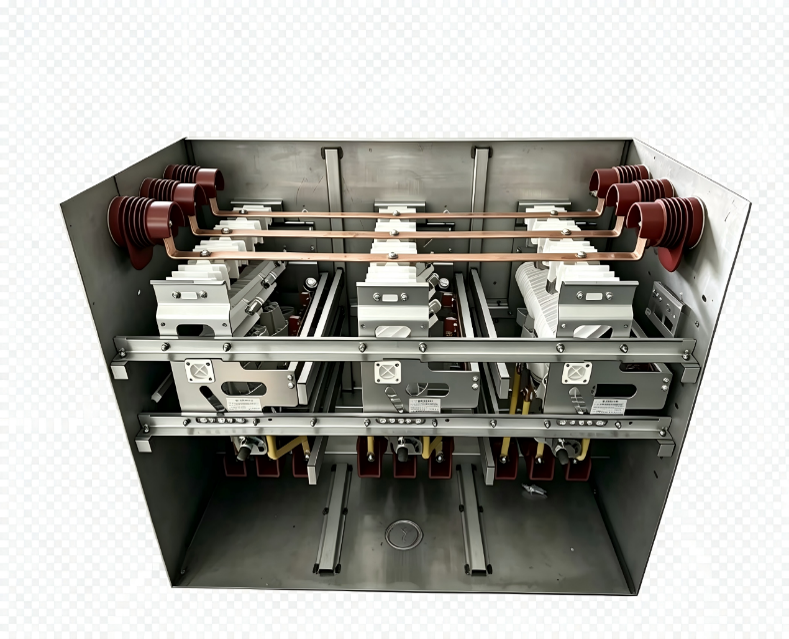

Gas tank ：

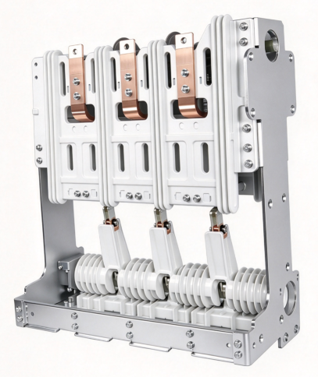

Circuit breaker for inflatable cabinet ：

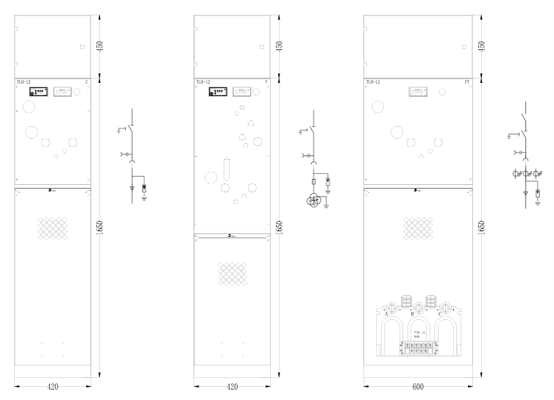

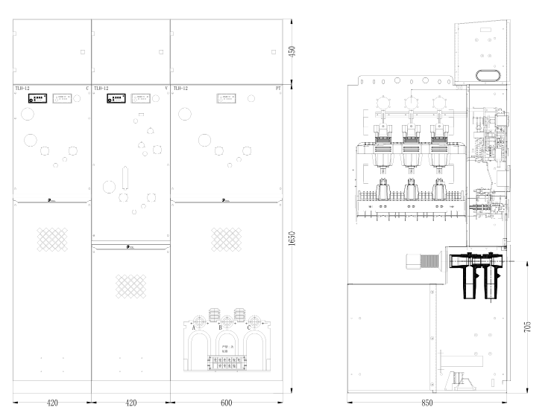

Drawing and dimensions:
