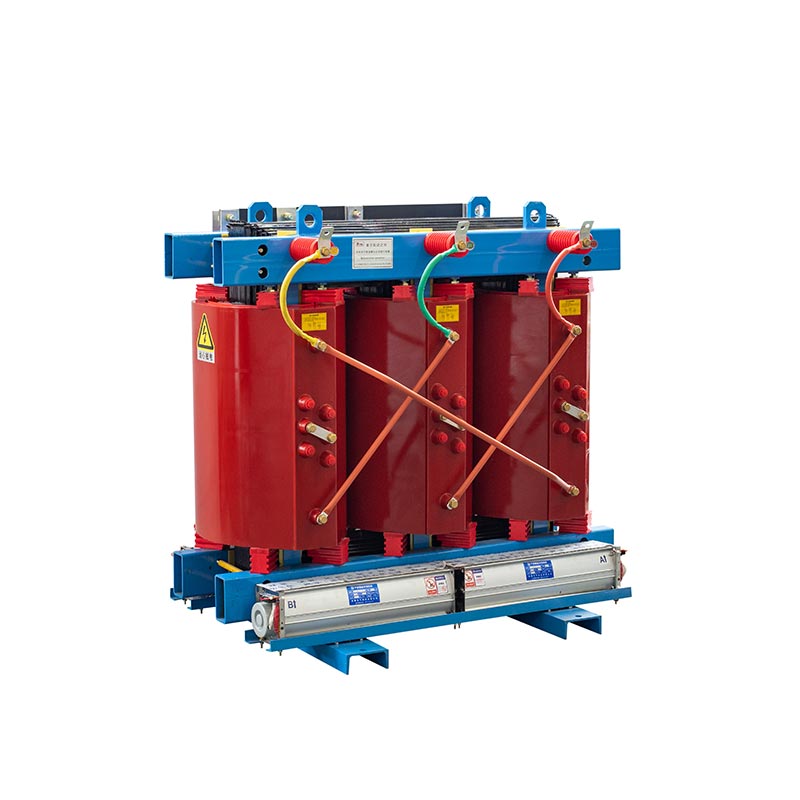

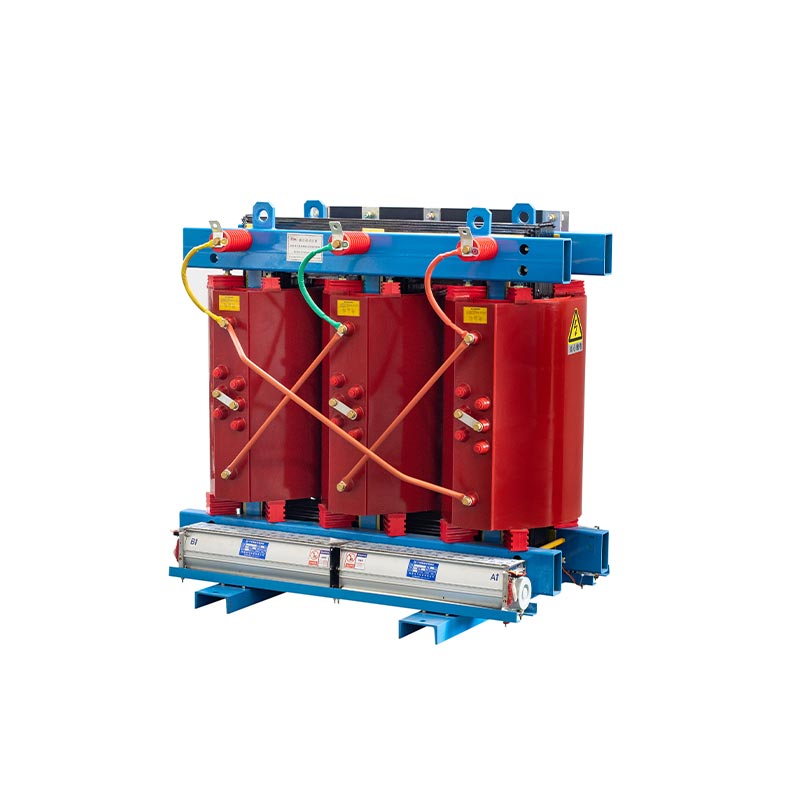

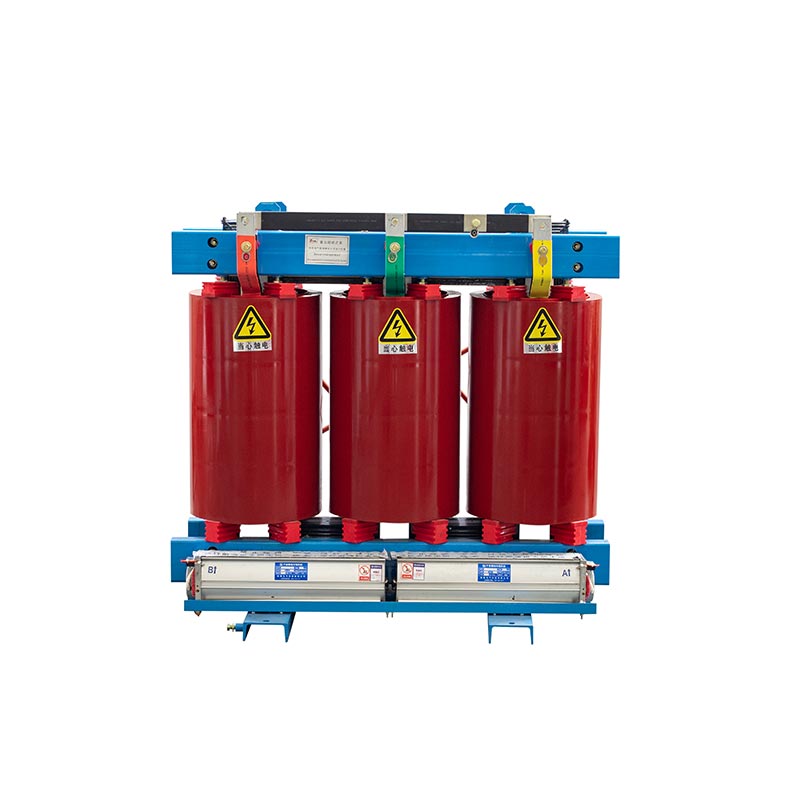

Epoxy Resin Cast Dry Type Power Transformer
Taili is a professional epoxy resin cast dry type power transformers manufacturer and supplier, these products are mainly used in places where there are high requirements for fire prevention, explosion protection and moisture resistance, such as high-rise buildings, commercial centers, hospitals, schools, etc.
You can rest assured to buy high quality epoxy resin cast dry type power transformers from Taili Electric, as we are a reliable manufacturer in China. The products are widely applied in industrial facilities, urban rail transit, renewable energy (such as solar energy, wind energy) and local lighting, etc. Their fire resistance and low noise characteristics make them the preferred choice for safety and reliability.
The key points of maintenance for epoxy resin cast dry type transformers
1. Maintain cleanliness: Regularly remove dust.
2. Control temperature: Ensure the cooling system is functioning properly and monitor the temperature rise to avoid
exceeding the limit.
3. Ensure tightness: Prevent electrical connection points from loosening and overheating.
4. Keep the environment dry: Prevent insulation from getting damp.
5. Conduct regular tests: Discover potential problems in advance through preventive tests.
Common Faults and Their Solutions
| Fault phenomenon | Possible reasons | Solution method |
| Excessive temperature rise |
1. Long-term overloading 2. Fan failure or air duct blockage 3. Inter-turn short circuit inside the winding 4. Poor contact at connection points |
1. Load reduction operation 2. Repair the fan and clean the air duct 3. Power off for winding repair 4. Re-tighten the connection points |
| Abnormal noise |
1. The iron core clamps or fasteners are loose. 2. Winding loosening 3. Excessive voltage |
1. Tighten loose components 2. Send to the factory for maintenance 3. Adjust the grid voltage |
| Insulation resistance decreases |
1. Moisture absorption 2. Severe contamination on the insulation surface 3. Insulation aging |
1. Conduct dehumidification treatment 2. Thorough cleaning 3. Consult the manufacturer |
| The fan is not rotating. |
1. Power failure 2. Motor damage 3. Thermal relay activation |
1. Check the control loop 2. Replace the fan 3. Reset and investigate the cause |

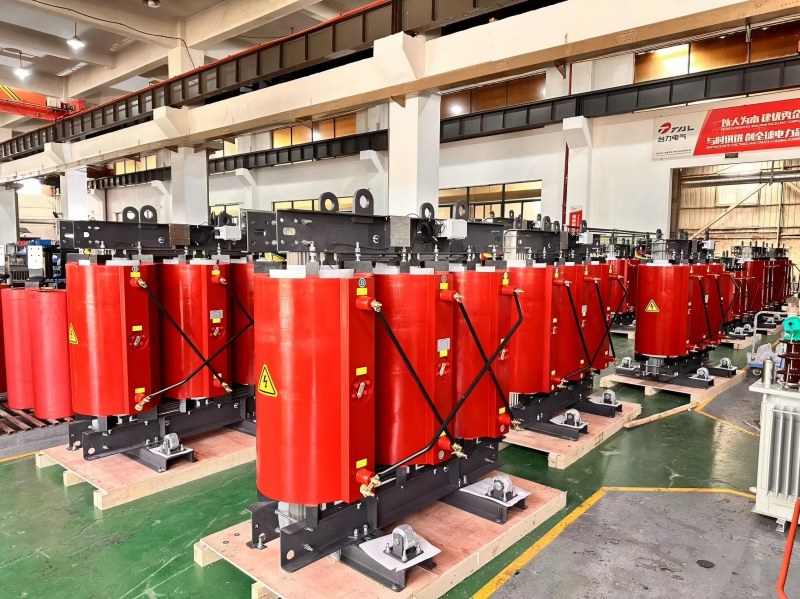

Production

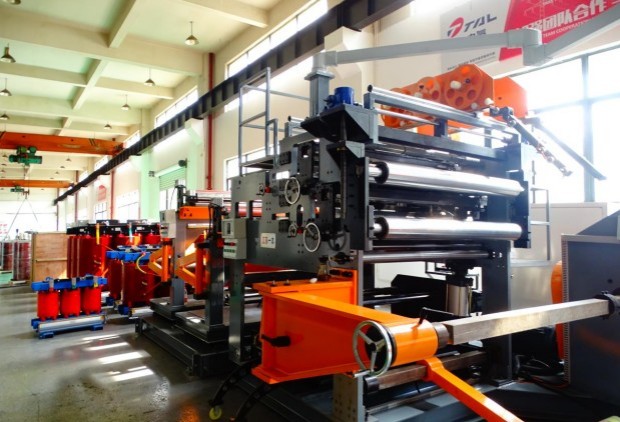

Winding

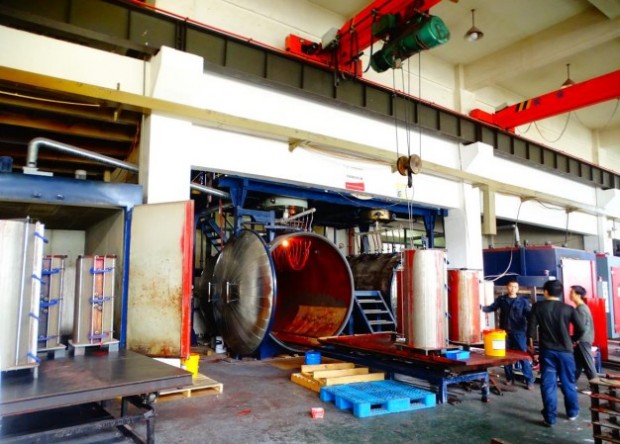

Casting resin

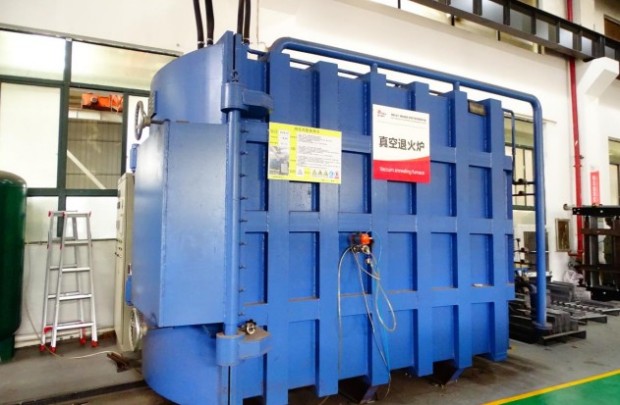

Vacuum annealing furnace

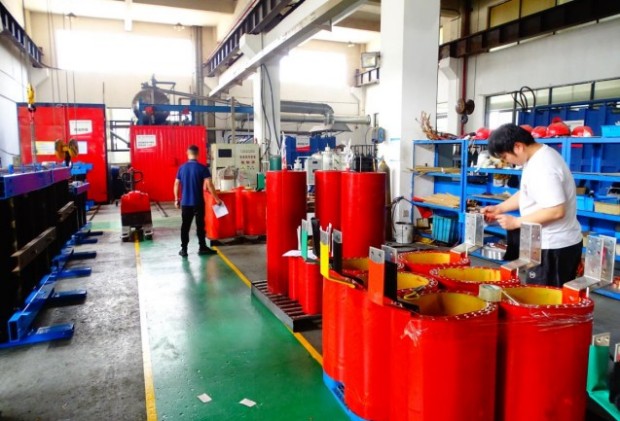

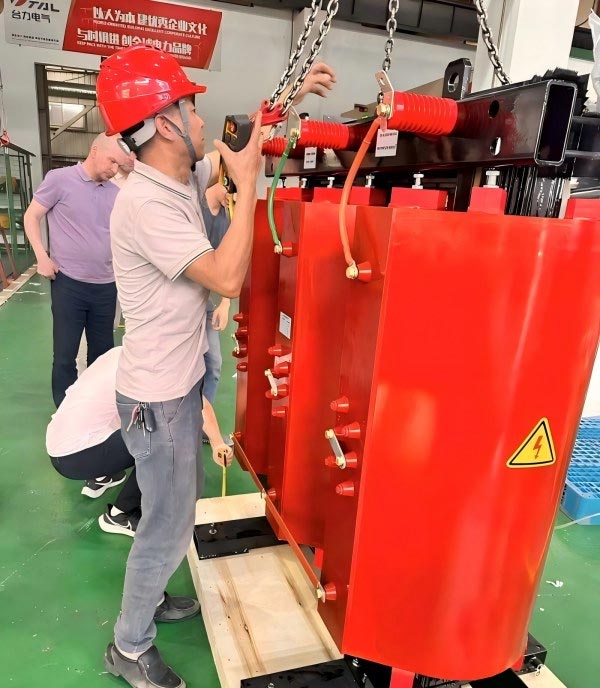

Assembling
Standard specification
1. Applicable specification: IEC 60076 / IEEE
2. Rated capacity: up to 4MVA
3. Primary voltage: 35kV
4. Secondary voltage: 380/400/415V or customized
5. Winding materials: Copper/ Aluminum
6. Temperature rise: 65 °C/100℃ or customized
7. Cooling method: ONAN/ONAF
8. Frequency: 50Hz/60Hz
9. Taps voltage: ±5% / ±2x2.5% or customized
10. vector group: Dyn11 / Yyn0 / Yd11
Please provide the following information, and we will be able to offer better services.
| Product application scenarios | |
| Product technical parameters |

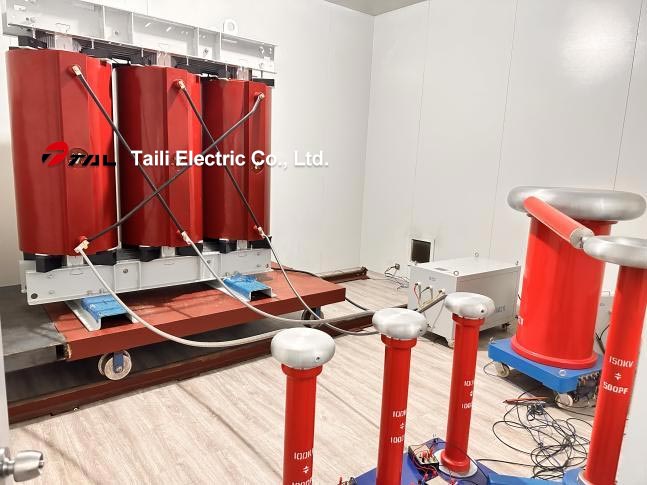

Test
Routine tests:
· Measurement of voltage ratio and check of phase-displacement
· Insulation resistance test
· Measurement of winding resistance
· Voltage withstand test
· Induce over-voltage withstand test
· Measurement of no-load loss and exciting current
· Measurement of short circuit impedance and Load loss
· Measurement of voltage ratio and check of phase-displacement
· Insulation resistance test
· Measurement of winding resistance
· Voltage withstand test
· Induce over-voltage withstand test
· Measurement of no-load loss and exciting current
· Measurement of short circuit impedance and Load loss
Type tests:
· Lighting impulse test
· Temperature rise test
