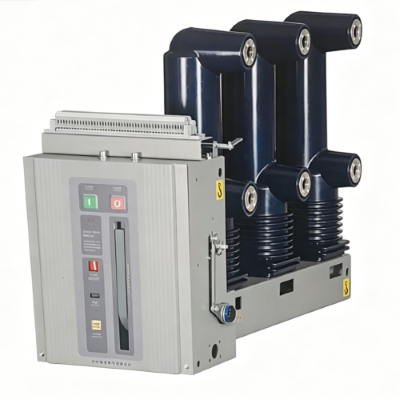

24 kV Side-Mounted Fixed Vacuum Circuit Breaker

Table of Technical Parameters：

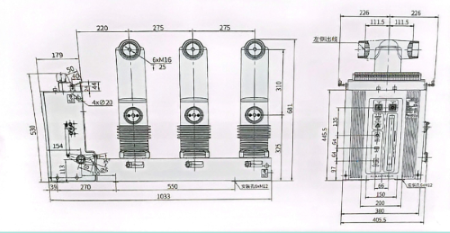

Outline Dimension Diagram

Workshop

FAQ

Q1: What is the difference between a side-mounted fixed breaker and a standard withdrawable breaker?

A side-mounted fixed breaker is mounted directly onto the cabinet frame, with the operating mechanism positioned on the side of the breaker body. It does not require a withdrawable truck or racking mechanism.

This can result in a simpler and more compact switchgear arrangement with lower mechanical complexity. However, because the breaker is fixed in position, removal or servicing normally requires the relevant circuit to be safely isolated and de-energized.

For fixed-type switchgear, ring main units, compact substations, and applications with limited installation space, a side-mounted fixed circuit breaker can be a practical solution.

Q2: Can I use this breaker to replace an existing withdrawable breaker?

Not directly in most cases. A withdrawable circuit breaker requires a dedicated truck compartment, guide structure, and racking mechanism, while a fixed circuit breaker is mounted directly onto the cabinet structure.

If the existing cabinet was specifically designed for a withdrawable breaker, the cabinet structure and electrical clearances must be evaluated before considering any replacement.

The TaiLi Electric side-mounted fixed circuit breaker is primarily designed for fixed-type switchgear without a withdrawable truck compartment.

Q3: What are the main causes of insulation problems in 24 kV circuit breakers, and how does this product address them?

Moisture, surface contamination, condensation, inadequate creepage distance, and deterioration of insulating materials can affect insulation reliability in medium-voltage equipment.

The solid-insulated pole design encapsulates the vacuum interrupter and key conductive components in epoxy resin, providing enhanced resistance to moisture, dust, and contamination. The insulation structure is designed according to the applicable 24 kV insulation requirements.

Actual insulation performance depends on the complete circuit breaker design, installation conditions, and applicable technical standards.

Q4: Is this breaker suitable for frequent operation?

Yes. The TaiLi Electric 24 kV side-mounted fixed vacuum circuit breaker is designed with a mechanical endurance of up to 20,000 operating cycles, depending on the specific configuration.

It can be used in applications requiring repeated switching operations, such as transformer feeders, motor feeders, and industrial medium-voltage power distribution systems.

For special switching duties, such as capacitor bank applications, the required switching capability should be confirmed according to the specific operating conditions and product configuration.

Q5: Can this breaker be used in high-altitude locations?

Standard configurations are generally designed for installation at normal altitude conditions. For installations above 1,000 m, insulation and clearance requirements should be evaluated according to the applicable standards and actual installation conditions.

High-altitude configurations can be discussed according to the project requirements. Please provide the installation altitude when requesting a quotation or technical proposal.

If you have an existing switchgear drawing, circuit breaker drawing, or technical specification, you can also send it to TaiLi Electric for technical evaluation.
