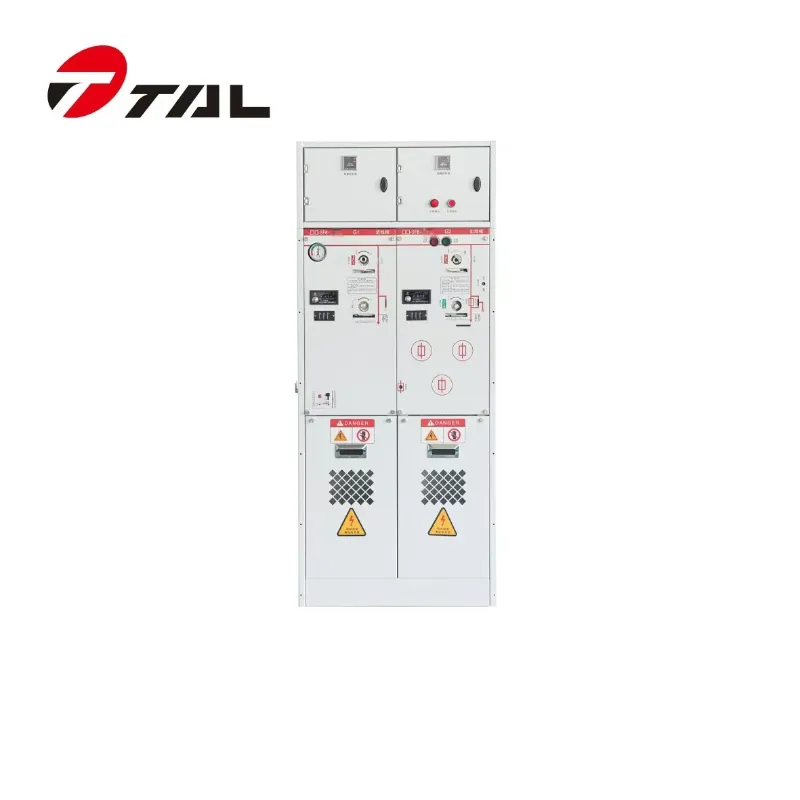

Low Leakage & Long Lifespan: Core Advantages of Taili 36kV SF6 Gas Insulated Switchgear

In medium-voltage power distribution engineering, hidden equipment defects often lead to excessive post-operation maintenance costs and frequent grid downtime. Most conventional 36kV switchgears suffer from unavoidable SF6 gas seepage and progressive performance degradation after years of operation, forcing repeated inflation, routine inspections and equipment replacement. This not only increases project operational expenditure but also brings potential safety hazards to stable power supply. Differentiating from ordinary switchgear products on the market, Taili 36kV SF6 Gas Insulated Switchgear focuses on full-cycle operational stability, with customized low-leakage sealing technology and anti-degradation structural design, solving the industry pain points of short service life and unstable sealing, and becoming a reliable long-term operating device for medium-voltage power distribution projects.

Optimized Integrated Sealing Structure Effectively Avoids SF6 Gas Seepage

One-piece integral gas box molding:

The overall gas tank adopts integrated processing technology, reducing welding joints and assembly gaps that are prone to leakage. The seamless structural design fundamentally avoids invisible gas seepage caused by traditional multi-piece splicing.

Industry-leading 0.01% annual leakage rate:

Matched with high-temperature resistant and aging-proof sealing accessories, the equipment passes multi-round high-pressure air tightness testing before delivery. The stable annual leakage rate far outperforms ordinary products, eliminating the need for frequent gas supplementation and regular sealing inspections.

Dynamic pressure insulation stability:

Stable internal gas pressure is maintained throughout long-term operation, ensuring that the insulation and arc extinguishing capabilities of the equipment do not decay with gas loss, realizing consistent performance output for years.

Anti-Degradation Design Delays Full-Cycle Equipment Aging

Isolated internal and external protection system:

The IP67-rated fully sealed gas box completely isolates internal conductive and insulating components from external harsh media. It prevents metal oxidation, insulation layer damp failure and dust accumulation, avoiding common aging defects of traditional open and semi-sealed switchgears.

Enhanced mechanical anti-fatigue structure:

Core transmission and closing components are optimized with wear-resistant structural design, supporting up to 10,000 times of mechanical operations. It adapts to frequent switching actions of peak grid regulation without mechanical jamming or component wear failure.

Low-heat operational optimization:

The loop resistance is strictly controlled below 300Ω, which reduces operating heat accumulation and thermal stress. It avoids long-term overheating-induced component aging and performance decline, maintaining stable electrical performance for long-cycle operation.

Consistent Dielectric Performance Eliminates Mid-Term Operational Risks

Durable high-voltage resistance capability:

It stably maintains standard power frequency withstand voltage and lightning impulse withstand voltage under 40.5kV working conditions, with no insulation breakdown risk caused by long-term voltage impact.

Long-term efficient arc extinguishing performance:

The optimized internal gas flow field structure cooperates with high-purity SF6 gas, which can quickly and accurately cut off short-circuit faults in frequent operations, without arc ablation residue accumulation and performance degradation.

Strong environmental anti-interference ability:

It adapts to extreme working conditions such as high-temperature heat, low-temperature frost, coastal salt spray and industrial high humidity, ensuring that dielectric performance is not affected by external environments and reducing unexpected equipment faults.

Modular Customization Matches Long-Term Stable Operation of Diverse Projects

Multi-scenario unit configuration:

Supports C, F, V and other modular unit combinations, covering load breaking, isolation grounding and VCB vacuum breaking functions, meeting the stable operation demands of different power distribution links.

Adaptive current and short-circuit resistance design:

Optional 630A and 1250A rated current specifications, matched with 20/25kA 4s short-time withstand current. It can resist instantaneous fault impact of the power grid for a long time without structural damage.

Scientific operating sequence optimization:

Adopts standardized 0-0.3S-CO-180S-CO operating logic, which reduces unnecessary mechanical loss and effectively prolongs the service life of moving parts.

Taili’s Process Upgrading Supports High-Quality Long-Life Products

Based on mature medium-voltage switchgear manufacturing experience, Taili has completed targeted technical iteration for 36kV high-voltage models on the basis of stable 24kV SF6 cabinet technology. Different from ordinary manufacturers’ simple parameter copying, Taili optimizes welding precision, sealing matching and mechanical assembly technology in all links. Each equipment is verified by air tightness detection, high-voltage aging test and mechanical fatigue test before delivery. Strict production standards ensure that each batch of switchgears has ultra-low leakage characteristics and long-term stable operation capability, providing reliable durable equipment support for municipal power grids, industrial power distribution and new energy projects.
