3-Phase Oil Immersed Distribution Transformer

Taili is a leading manufacturer and supplier in China, and we can offer you high quality transformers. The main components of 3-phase oil immersed distribution transformers include the core, windings, oil tank, and transformer oil. During operation, the heat generated by the coils and the core is dissipated through the transformer oil.

Features

High reliability: Transformer oil can effectively prevent insulation from getting damp, thereby enhancing operational reliability.

Excellent heat dissipation performance: Transformer oil can effectively disperse heat, increasing equipment lifespan and overload capacity.

Compact size: Utilizing designs such as corrugated oil tanks, the product's size is reduced, making installation easier.

Easy maintenance: Some fully sealed designs can achieve maintenance-free or low-maintenance, reducing operating costs.

Strong weather resistance: Capable of operating in various outdoor environmental conditions.

Economical: Compared to dry-type transformers of the same capacity, the price is more advantageous.

Video

Standard specification：

1. Applicable specification: IEC 60076 / IEEE

2. Rated capacity : up to 5MVA

3. Primary voltage: up to 35kV

4. Secondary voltage: 380/400/415V or customized

5. Winding materials: Copper/ Aluminum

6. Temperature rise: 65 °C

7. Cooling method: ONAN/ONAF

8. Frequency: 50Hz/60Hz

9. Taps voltage: ±5% / ±2x2.5% or customized

10. Vector group: Dyn11 / Yyn0 / Yd11 / Ynd11

Production:

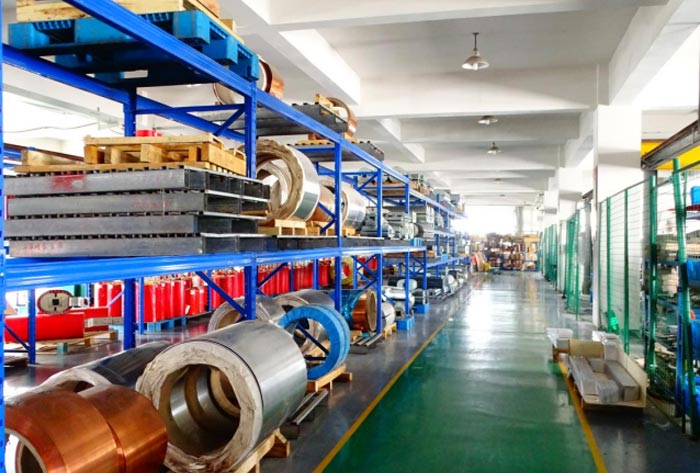

Raw material

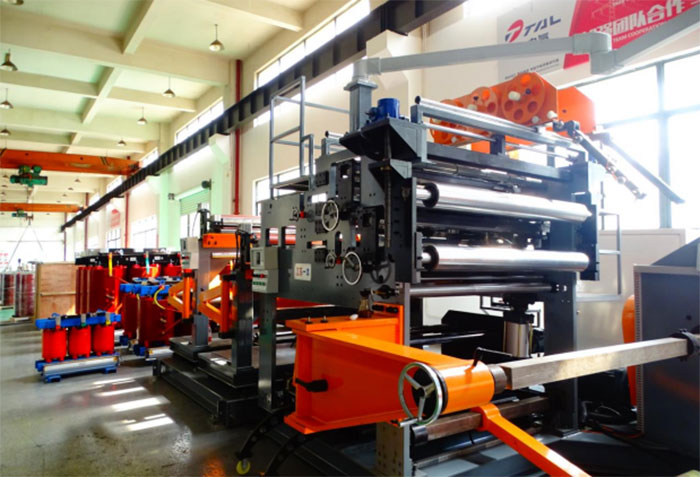

Winding

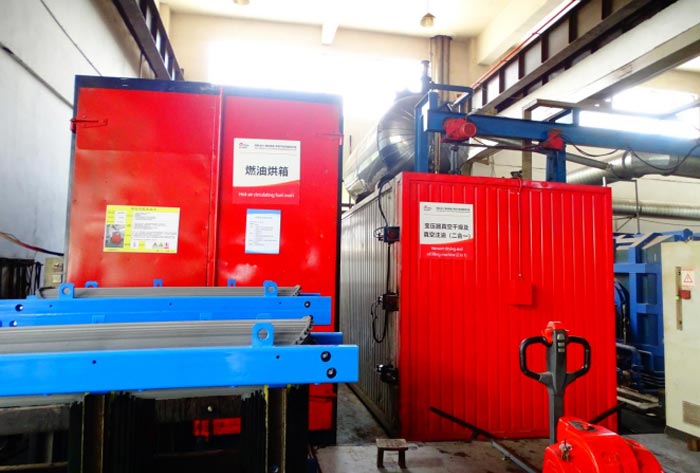

Vacuum drying and vacuum oil filling（2 in 1 ）

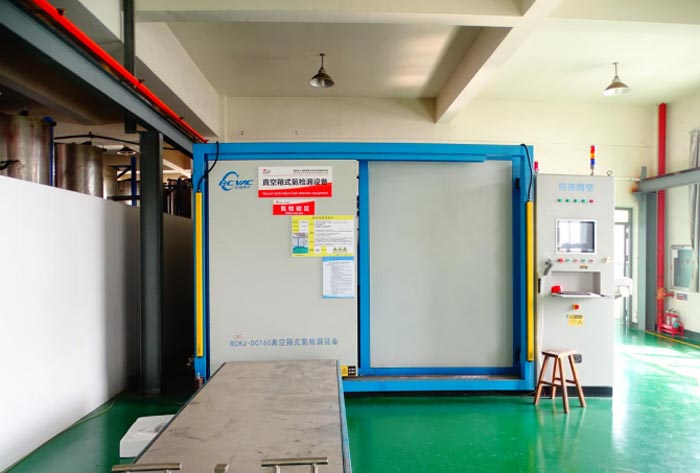

Leak Detector

Please provide the following information, and we will be able to offer better services.

Key operating points

When you are operating the 3-Phase Oil Immersed Distribution Transformer, you must pay attention to the following points:

1. Operating Specifications: When dealing with oil, fire prevention and explosion protection must be observed. Before operation, static electricity should be released to avoid sparks caused by the collision of metal tools.

2. Personnel Protection: During inspections or operations, insulated shoes should be worn, safety helmets should be worn, and a safe distance should be maintained.

3. Maintenance Safety: During maintenance, the high and low voltage switches must be disconnected first, and electrical testing and grounding should be performed.

4. Emergency Handling: In case of fire, the power supply should be immediately cut off, and dry powder or carbon dioxide fire extinguishers should be used to extinguish the fire. Water is strictly prohibited for firefighting.

5. High Voltage Connection: When installing the oil immersed transformer, it is strictly forbidden to connect with copper rods using aluminum wires or aluminum plates to avoid corrosion.
