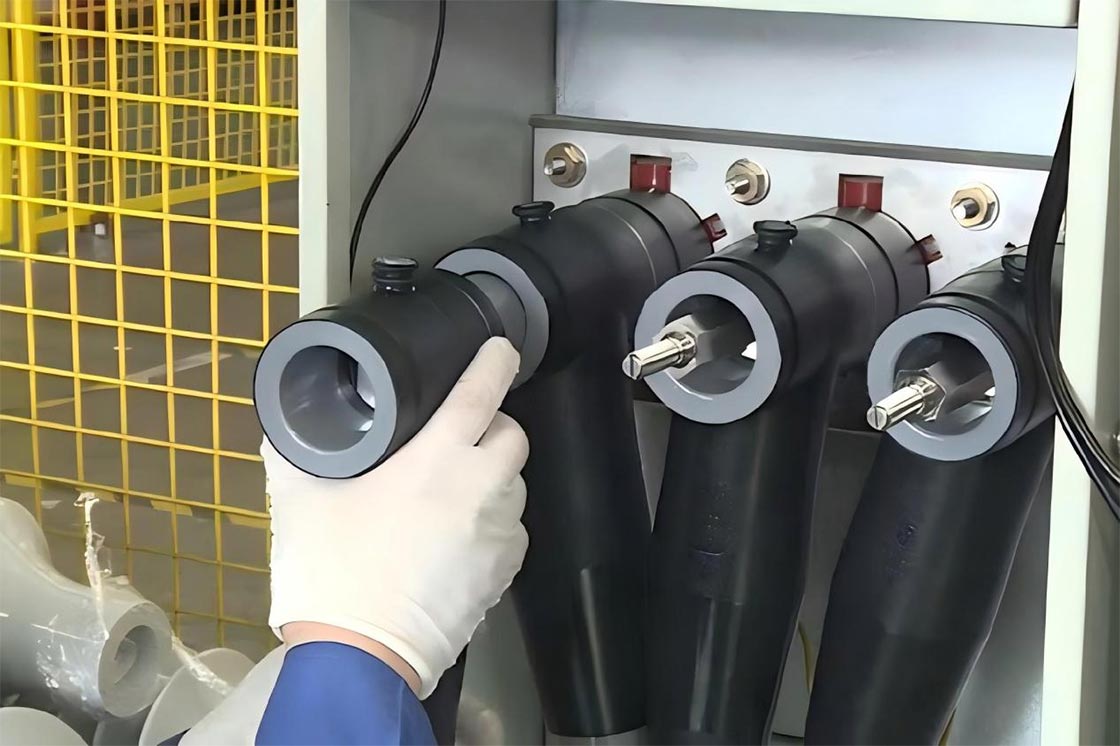

630A Separable Connector
Taili Electric is a professional manufacturer in China. Our 630A separable connector is suitable for AC power cables in RMU and cable distribution boxes. It is supported by EPDM rubber and has excellent electrical performance as well as resistance to moisture and ultraviolet rays.
Advantage
1. Extremely high security. The 630A Separable Connector offered by Taili Factory is fully insulated and touchable, thus eliminating the risk of electric shock.
2. Modularization and flexibility: Composed of independent modules, they can be flexibly combined, maintained, and replaced.
3. High reliability. It is made of EPDM rubber or silicone rubber, featuring excellent electrical properties, anti-aging capability and sealing performance.
| Item | 12kV | 24kV | 36kV |
| Withstand voltage | 45kV/min | 55kV/min | 117kV/min |
| Impulse withstand voltage | 95kV | 125kV | 215kV |
| Partial discharge＜10pc | 12kV | 24kV | 36kV |
Application
1. For connection of polymeric cable to transformers, switchgears, motors and other equipments.
1. For indoor and outdoor installations.
2. System voltage up to 36 kV.
3. Continuous current 630 A (900 A overload for 8 hours).
Selection table
| Front Connector | Rear Connector | Surge Arrester | |
| 12kV | 25-500mm² | 25-500mm² | 17/4517/50 |
| 24kV | 35-400mm² | 35-400mm² | 34/78 |
| 36kV | 50-500mm² | 50-500mm² | 51/134 |
How to choose the right model
| Rated voltage(kV) | Size(mm²) | conductor material |
It should also be noted that since each manufacturer has a different design for the 630A separable connector, if you want to purchase the rear separable connector or the surge arrester separately, please confirm the size with the manufacturer. And it would be the most reliable option to purchase them together with the front connector.
