250A Separable Connector
Taili is a supplier of 250A Separable Connectors, which are key components for achieving insulation, modularization and miniaturization in modern medium-voltage distribution networks. This product is not merely a connector but also a safety system integrating multiple functions such as connection, insulation, isolation and testing.
Welcome to buy 250A Separable Connector from China Taili Factory, its wide application has significantly enhanced the reliability, safety and flexibility of the distribution network.
Key advantage:
1. High reliability: Utilizing EPDM rubber material and precise design, it ensures the equipment operates stably for a long time.
2. Safety: Equipped with anti-electric shock, anti-short circuit and anti-misoperation designs, it complies with international safety standards.
3. Simple operation: Adopting a simple plug-and-play design, the connection and disconnection are very convenient and swift.
Installation
• No need for special tools, heating, pasting or sealing operations
• 250A Separable Connector can be powered on immediately after installation
• Matches with bushings, plugs and connection devices, which are designed for interface A and comply with the listed standards
Application

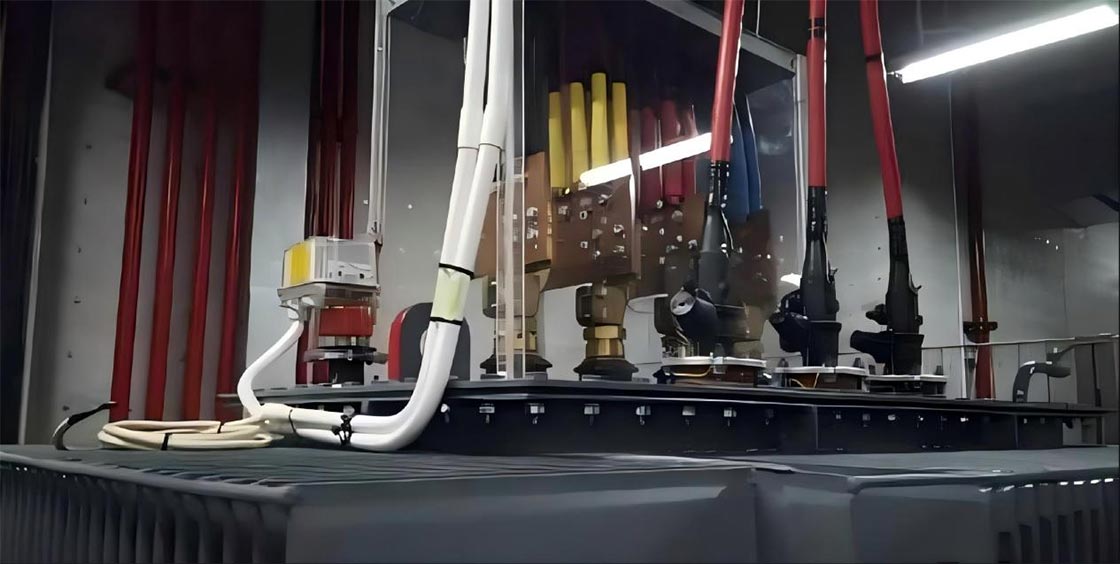

• For indoor and outdoor installations

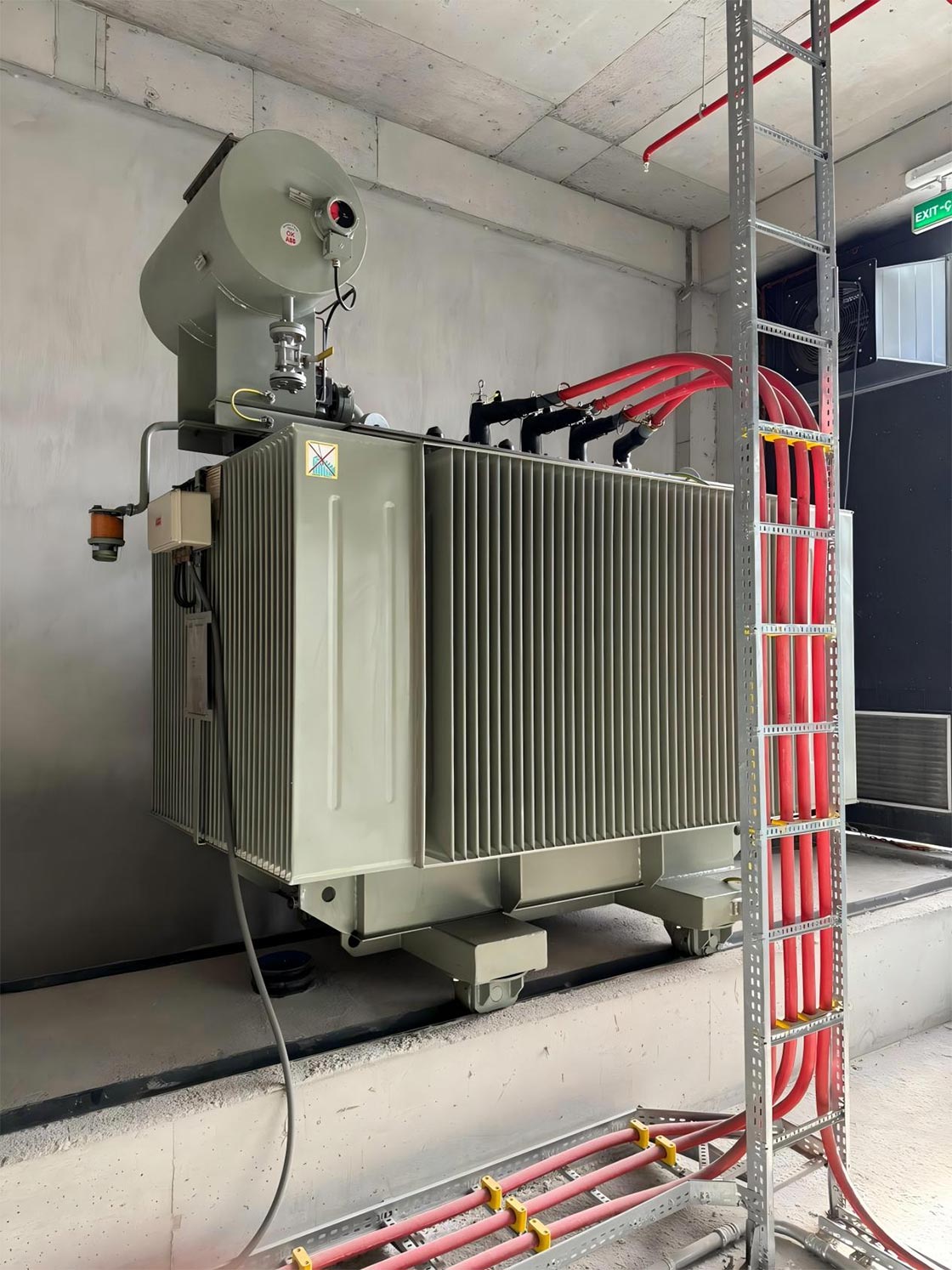

• Connecting underground cables (XLPE, EPR) to switchgear (RMU) and transformers.
• Type A interface as described by CENELEC EN 50180 and EN 50181
• System voltage up to 24 kV
• Continuous current 250 A (300 A overload for 8 hours)
Standards
Meets the requirements of CENELEC HD629.1 and IEC 60502-4
| Item | 24kV |
| Withstand voltage | 55kV/min |
| Impulse withstand voltage | 125kV |
| Partial discharge＜10pc | 24kV |
Selection table:
| Elbow separable connector | Straight separable Connector | |
| 12kV | 25-120mm² | 25-120mm² |
| 24kV | 35-120mm² | 35-120mm² |
How to choose the right model
| Rated voltage(kV) | Size(mm²) | conductor material |
