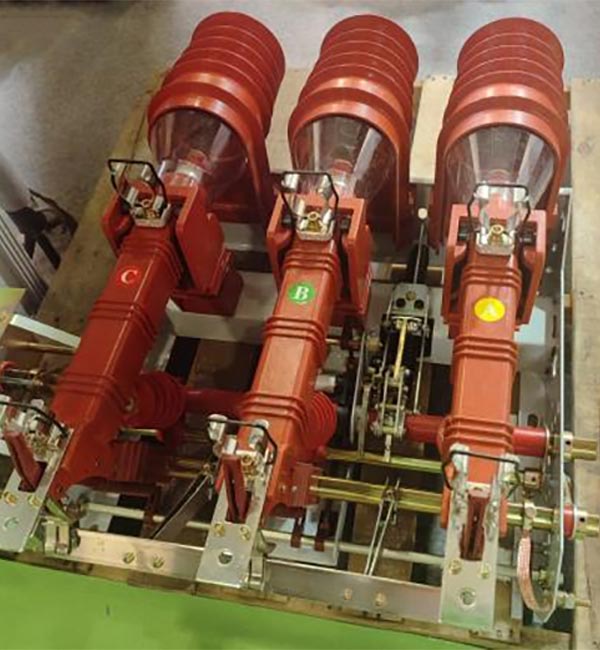

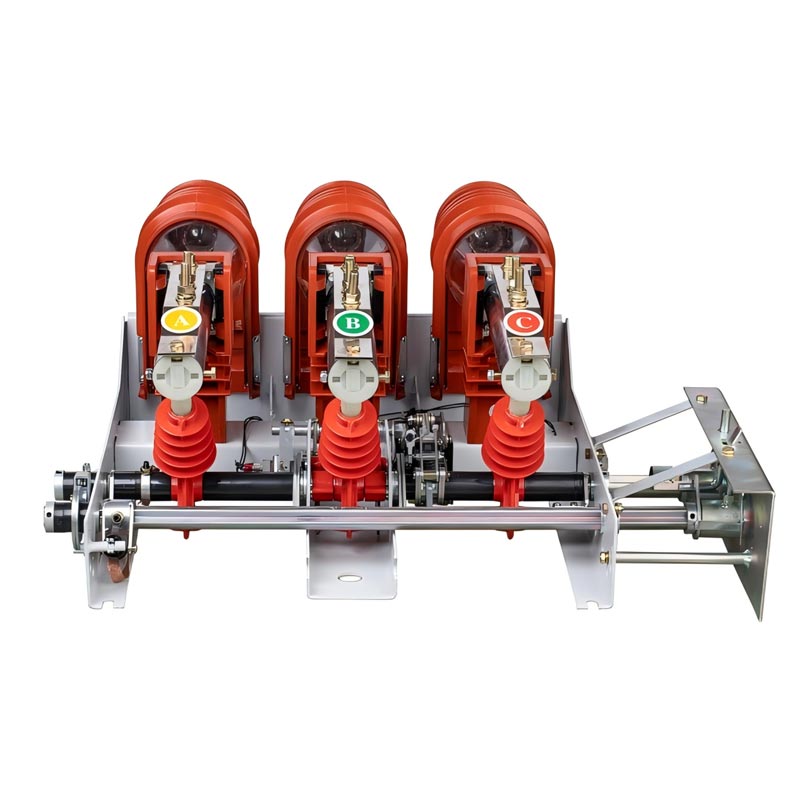

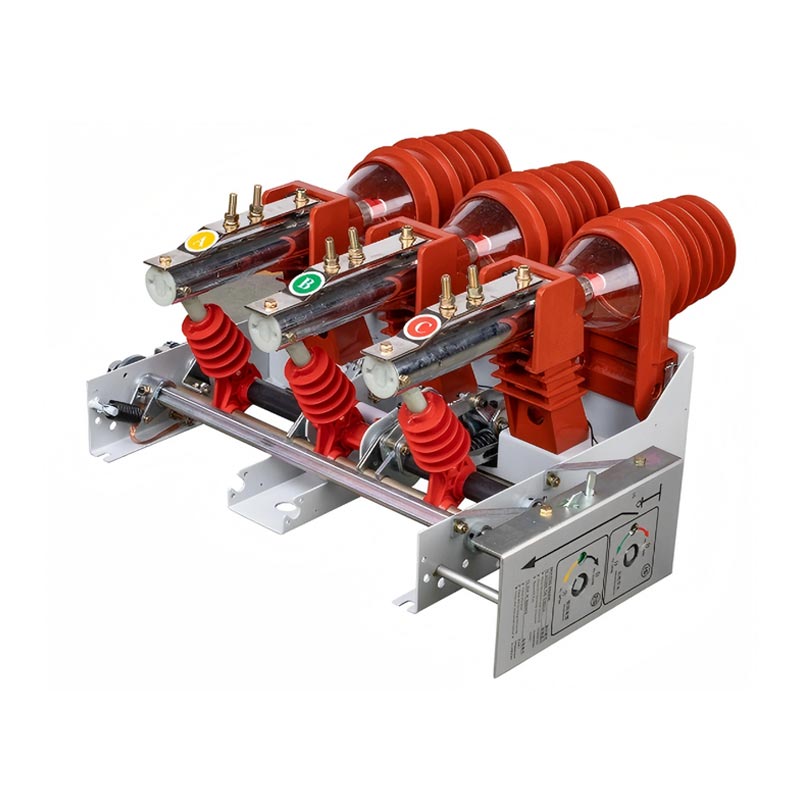

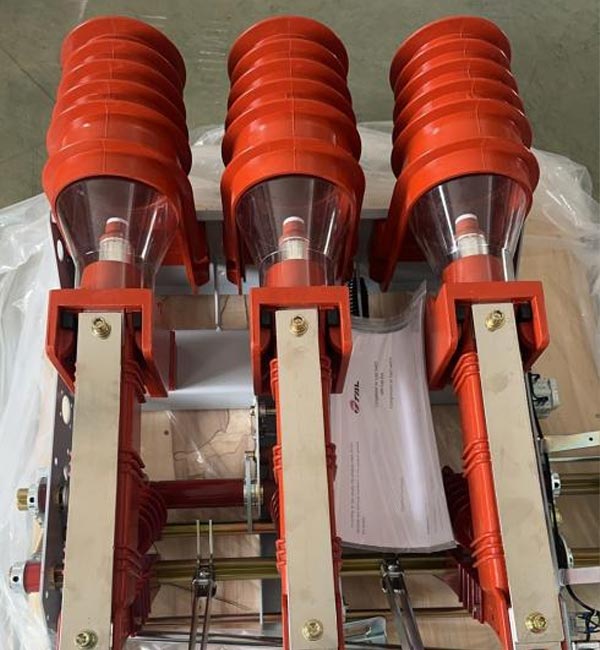

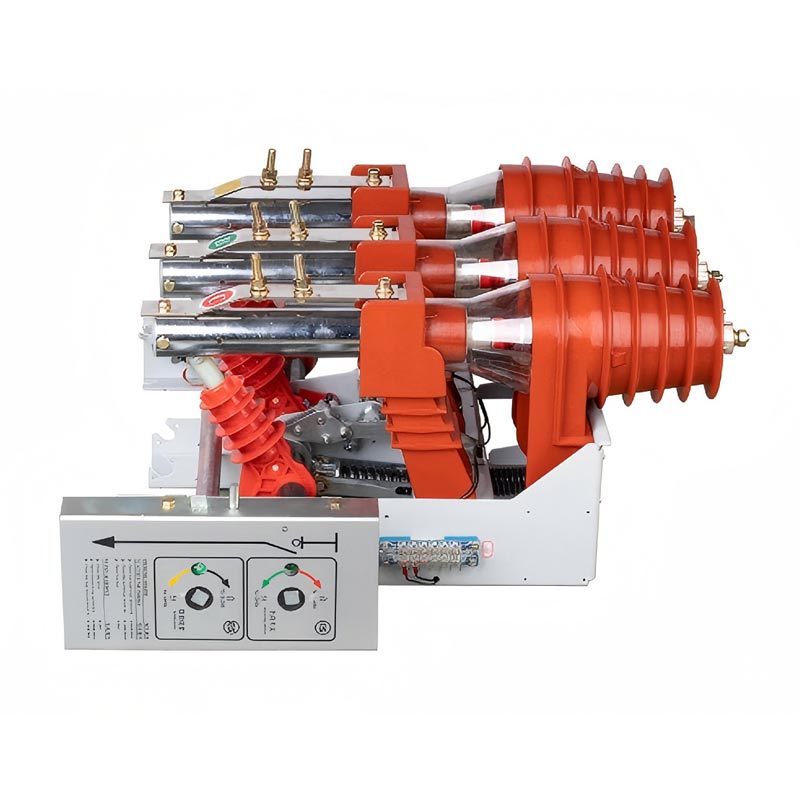

Indoor Vacuum Load Switch
Indoor vacuum load switch is a kind of switchgear specially designed for the internal power distribution system of buildings. It uses vacuum as the arc-extinguishing and insulating medium, and can safely and reliably connect and disconnect circuits under load current. It has a clear isolation gap, but its ability to break short-circuit current is limited or non-existent.
You can contact Taili and we are a reliable manufacturer of indoor vacuum load switch. Get a customized and advanced solution from our factory, as well as comprehensive services.
Main advantages (Why it becomes mainstream?)
1. Safety and Environmental Protection:
- No explosion risk: Arc extinguishing is completed in a sealed vacuum chamber, eliminating the risk of oil spraying like oil switches and the explosion risk of gas pressure vessels like SF6 switches.
- No greenhouse gases: No SF6 (a potent greenhouse gas) is used, aligning with environmental protection trends.
- No external arcs: All arcs are confined within the arc extinguishing chamber, ensuring safety for operators and surrounding equipment.
2. High Performance and Long Service Life:
- Strong arc extinguishing capability: The vacuum arc has low energy and short arc duration (typically within half a cycle), resulting in minimal contact wear.
- Long electrical life: Capable of breaking the rated load current thousands to tens of thousands of times, with minimal operation and maintenance, truly achieving "maintenance-free".
- Long mechanical life: Equipped with a precise spring operating mechanism, the mechanical life can exceed 10,000 operations.
3. Strong Adaptability and Easy Installation:
- Environmentally friendly: Vacuum performance is not affected by altitude, humidity, or contamination, making it particularly suitable for indoor spaces with limited space and variable environments.
- Compact structure: Small in size, saving valuable space in distribution rooms.
- Easy installation: Modular design, easily integrated into various switch cabinets.
4. Simple and Reliable Operation:
- Typically equipped with manual (with energy storage handle) and electric spring operating mechanisms, enabling remote control and automation.
| Indoor Vacuum Load Switch | Indoor vacuum circuit breaker | |
| Function | Operation (frequent load variation) | Protection and operation |
| Arc extinguishing chamber design | Relatively simple and with lower costs | More powerful, capable of withstanding and breaking short-circuit currents, as well as withstanding thermal stress. |
| Operating mechanism | Usually, it is a simple spring mechanism. | More complex and powerful springs or permanent magnet mechanisms ensure rapid tripping. |
| Protection device | There is no built-in relay protection; it relies on external fuses. | There are built-in or complementary microcomputer-based relay protection devices. |
| Application Focus | Electricity lifespan, economy, compactness | Short-circuit interruption capability, protection selectivity, reliability |
Warehouse
Please provide the following information, and we will be able to offer better services.
| Product application scenarios | |
| Product technical parameters |
