24kV Metal Solid Insulated Switchgear

24kV metal solid insulated switchgear is a durable product made by Taili factory. It represents an important development direction of distribution network switch technology and is particularly suitable for applications where high reliability of power supply, efficient space utilization and environmental protection are required.

Key precautions during maintenance:

1. Safety first: Any maintenance work must be carried out under complete power outage and with adequate safety measures in place.

2. Follow manufacturer's instructions: Different brands and models of solid insulation cabinets may have structural and technical differences. During maintenance, it is essential to strictly follow the operation manuals and repair guides provided by the equipment manufacturer.

3. Spare parts: Use original or certified spare parts, especially sealing rings, lubricating grease, etc. Incompatible components may lead to performance degradation or failure.

4. Environmental control: Maintain the environment of the switch room dry, clean, and well-ventilated to avoid condensation and corrosive gases.

5. Record and archive: Record detailed data from each inspection, maintenance, and testing. Establish a device health archive. By comparing data longitudinally, early deterioration trends of the equipment condition can be detected.

6. Prohibit unauthorized modification: Strictly prohibit any form of modification to the cabinet structure, electrical circuits, or insulation structure.

Standard specification

1. Rated voltage: 24 kV

2. Rated current: 630A / 1250A

3. Rated frequency: 50/60Hz

4. Ambient temperature: Indoor -25℃ to 40℃; Outdoor: -35℃ to 40℃

5. Altitude: The standard applies to areas up to 1000 meters. For altitudes exceeding 1000 meters, capacity reduction must be implemented in accordance with the standard.

6. Relative humidity: Daily average ≤ 95% Monthly average ≤ 90%

7. Protection class: IP4X (IP67)

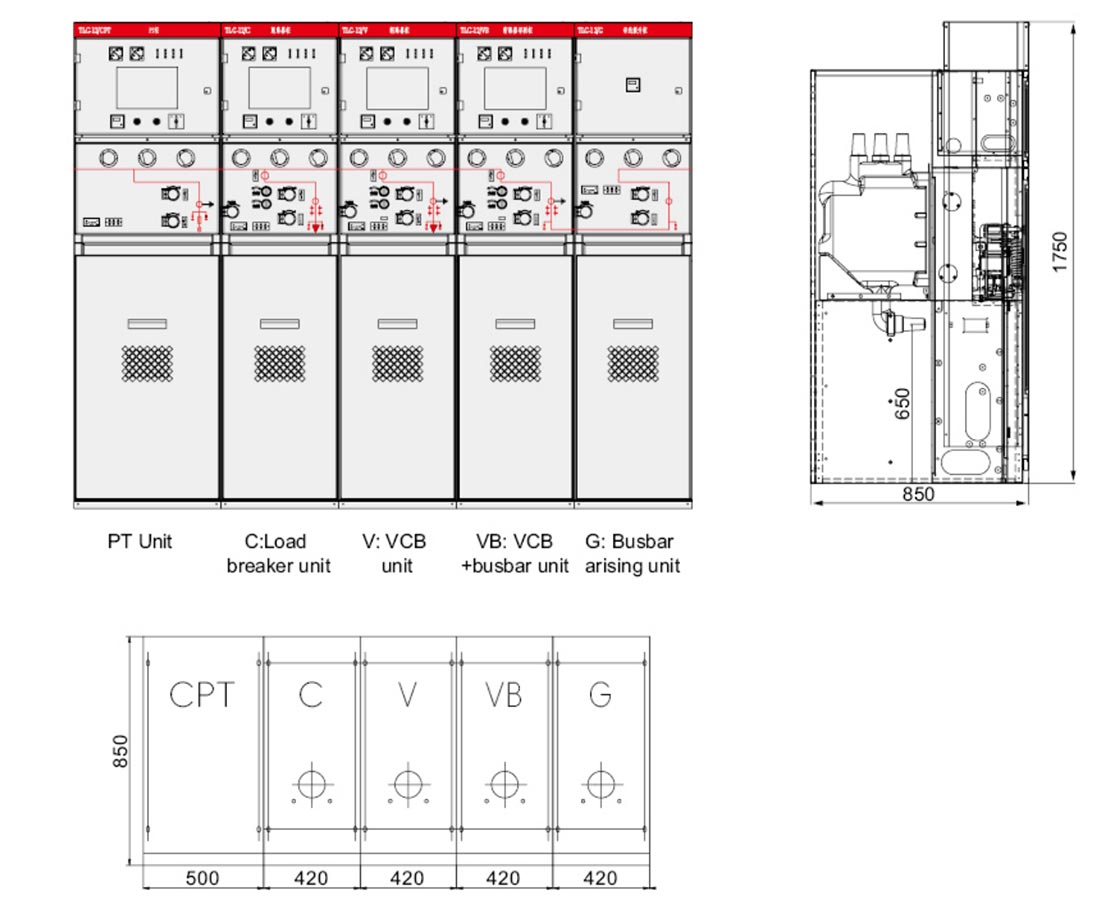

Drawing and dimensions
