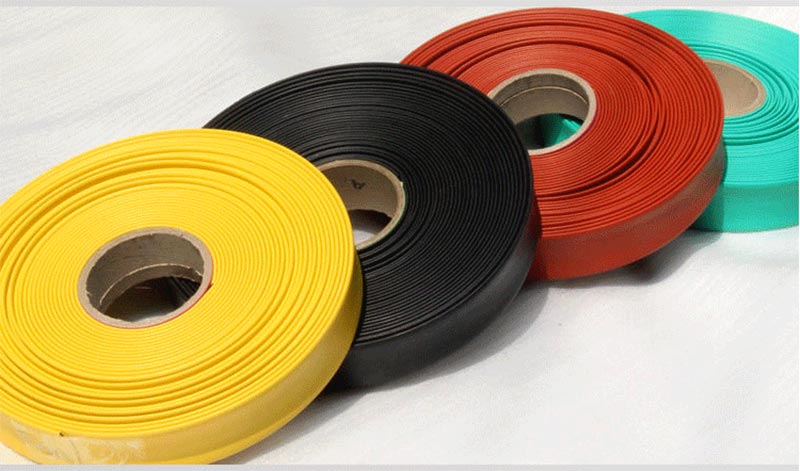

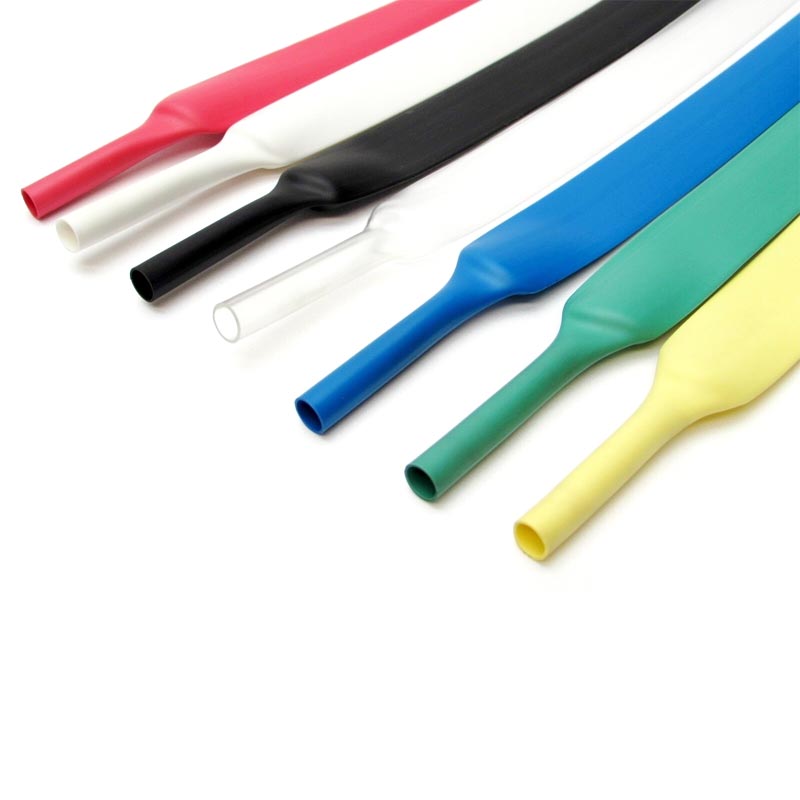

Heat Shrink Tube
Heat shrink tube is a kind of intelligent polymer material sleeve that contracts upon heating. You can buy this product from Taili factory in China. It utilizes the elastic memory effect to tightly wrap around objects after being heated, thereby achieving insulation, sealing, protection and identification functions.
Welcome to buy durable heat shrink tube from Taili, a professional manufacturer. Due to its low cost, wide applicability and reliable performance, this product has become an indispensable basic material in modern electrical and electronic fields.
Main features:
1. Excellent insulation properties, with good insulation performance, preventing short circuits.
2. Sealing and protection, after shrinking, it has good sealing properties, effectively preventing moisture, water, dust, and impact.
3. Rich in colors, can be used to distinguish different voltages, phases, and functions, and can serve as a marking function.
4. Simple installation, heating is sufficient.
5. High cost-effectiveness, low price, widely applicable.
2:1 1kV heat shrink tube:
Storage temperature: -40℃ to 50℃
Initial contraction temperature: 70℃; Complete contraction temperature: 125℃
Standard colors: Black, Red, Yellow, Green, Blue, White, Transparent, Other colors can be customized according to customer requirements.
| Specification(mm) | Dia before shrink(mm) | Dia after shrink(mm) | Wall thickness after shrink(mm) | Packing (m/roll) |
| Φ6.0 | 6 | 3 | 0.5±0.05 | 100 |
| *Φ7.0 | 7 | 3.5 | 0.5±0.05 | 100 |
| Φ8.0 | 8 | 4 | 0.55±0.05 | 100 |
| *Φ9.0 | 9 | 4.5 | 0.55±0.05 | 100 |
| Φ10 | 10 | 5 | 0.55±0.05 | 100 |
| *Φ11 | 11 | 5.5 | 0.55±0.05 | 100 |
| Φ12 | 12 | 6 | 0.6±0.05 | 100 |
| *Φ13 | 13 | 6.5 | 0.6±0.05 | 100 |
| Φ14 | 14 | 7 | 0.6±0.05 | 100 |
| *Φ15 | 15 | 7.5 | 0.6±0.05 | 100 |
| Φ16 | 16 | 8 | 0.65±0.05 | 100 |
| *Φ17 | 17 | 8.5 | 0.65±0.05 | 100 |
| Φ18 | 18 | 9 | 0.7±0.05 | 100 |
| Φ20 | 20 | 10 | 0.7±0.05 | 100 |
| Φ22 | 22 | 11 | 0.8±0.05 | 100 |
| Φ25 | 25 | 12.5 | 0.9±0.05 | 100 |
| *Φ28 | 28 | 14 | 0.9±0.05 | 100 |
| Φ30 | 30 | 15 | 0.9±0.05 | 50 |
| Φ35 | 35 | 17.5 | 0.9±0.05 | 50 |
| Φ40 | 40 | 20 | 1.0±0.05 | 50 |
| Φ50 | 50 | 25 | 1.0±0.05 | 50 |
| Φ60 | 60 | 30 | 1.0±0.05 | 50 |
| Φ70 | 70 | 35 | 1.0±0.05 | 25 |
| Φ80 | 80 | 40 | 1.0±0.05 | 25 |
| Φ90 | 90 | 45 | 1.1±0.05 | 25 |
| Φ100 | 100 | 50 | 1.1±0.05 | 25 |
| Φ120 | 120 | 60 | 1.2±0.05 | 25 |
| Φ150 | 150 | 75 | 1.2±0.05 | 25 |
| Φ180 | 180 | 90 | 1.2±0.05 | 25 |
Below 20mm mainly covers electronic products, while above 20mm mainly covers power products.

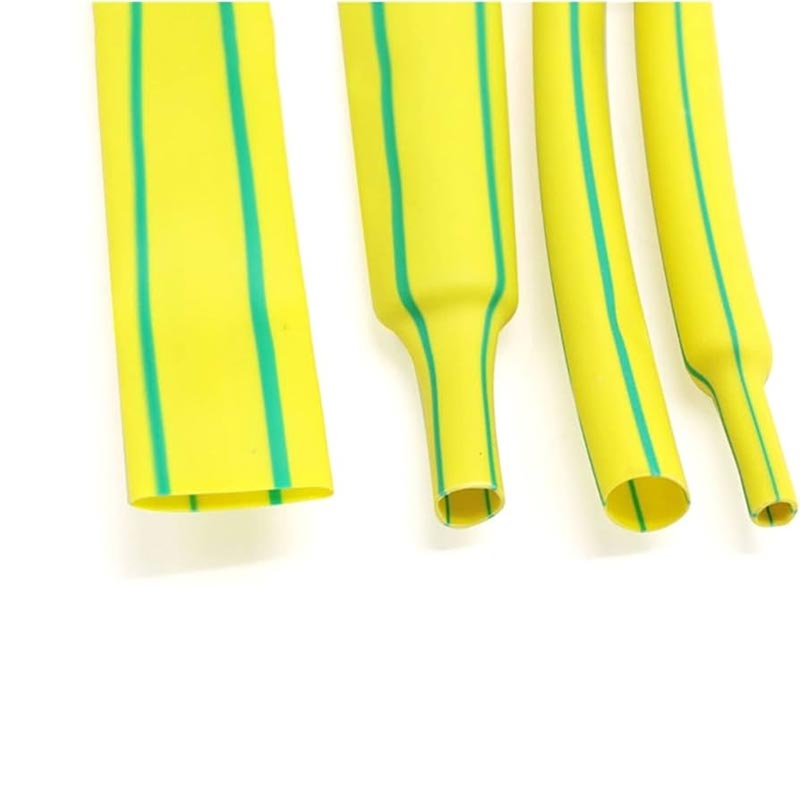

2:1 yellow & green heat shrink tube( for the ground wire)
(We can also offer a 3:1 ratio specification.)
| Specification(mm) | Dia before shrink(mm) | Dia after shrink(mm) | Wall thickness after shrink(mm) |
| Φ6.0 | 6 | 3 | 0.55±0.1 |
| *Φ7.0 | 7 | 3.5 | 0.55±0.1 |
| Φ8.0 | 8 | 4 | 0.6±0.1 |
| Φ10 | 10 | 5 | 0.6±0.1 |
| Φ12 | 12 | 6 | 0.65±0.1 |
| *Φ13 | 13 | 6.5 | 0.65±0.1 |
| Φ14 | 14 | 7 | 0.7±0.1 |
| *Φ15 | 15 | 7.5 | 0.75±0.1 |
| Φ16 | 16 | 8 | 0.75±0.1 |
| Φ18 | 18 | 9 | 0.8±0.1 |
| Φ20 | 20 | 10 | 0.82±0.1 |
| Φ22 | 22 | 11 | 0.82±0.1 |
| Φ25 | 25 | 12.5 | 1.00±0.1 |
| *Φ28 | 28 | 14 | 1.00±0.1 |
| Φ30 | 30 | 15 | 1.05±0.1 |
| Φ35 | 35 | 17.5 | 1.15±0.1 |
| Φ40 | 40 | 20 | 1.20±0.1 |
| Φ50 | 50 | 25 | 1.20±0.1 |
| Φ60 | 60 | 30 | 1.50±0.1 |
| Φ70 | 70 | 35 | 1.60±0.1 |
| Φ80 | 80 | 40 | 1.70±0.1 |
| Φ90 | 90 | 45 | 1.90±0.1 |
| Φ100 | 100 | 50 | 2.10±0.1 |
heat shrink busbar tube up to 36 kV
Color: red, yellow, blue, green, black
| Specification(mm) | Dia before shrink(mm) | Dia after shrink(mm) | Packing (m/roll) |
| Φ20 | 20 | 10 | 25 |
| Φ25 | 25 | 10 | 25 |
| Φ30 | 28 | 14 | 25 |
| Φ40 | 38 | 17 | 25 |
| Φ50 | 48 | 21 | 25 |
| Φ65 | 65 | 27 | 25 |
| Φ75 | 73 | 31 | 25 |
| Φ85 | 85 | 32 | 25 |
| Φ100 | 100 | 38 | 25 |
| Φ120 | 120 | 50 | 25 |
