Products

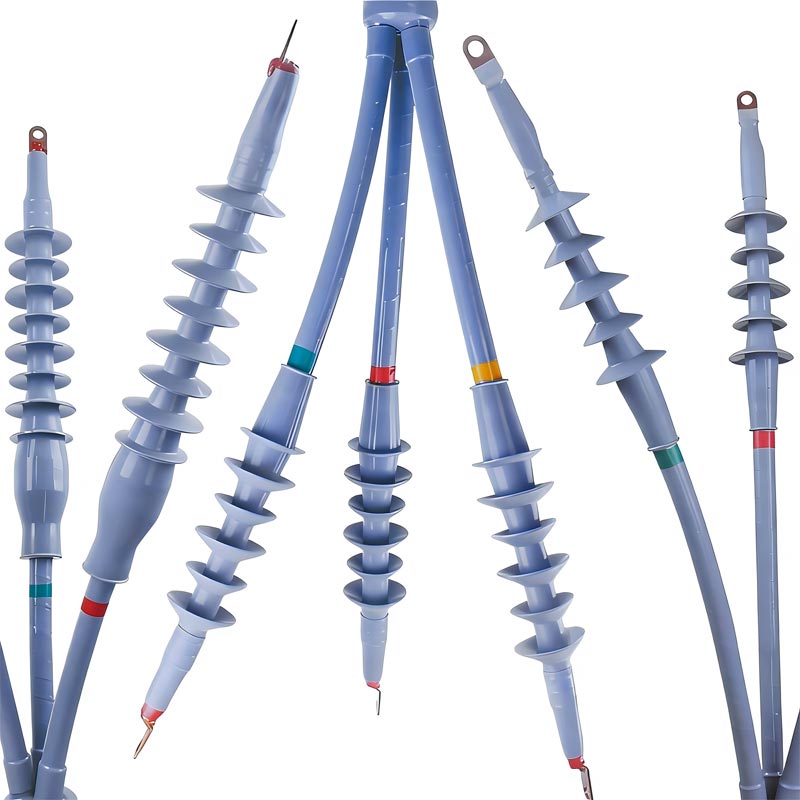

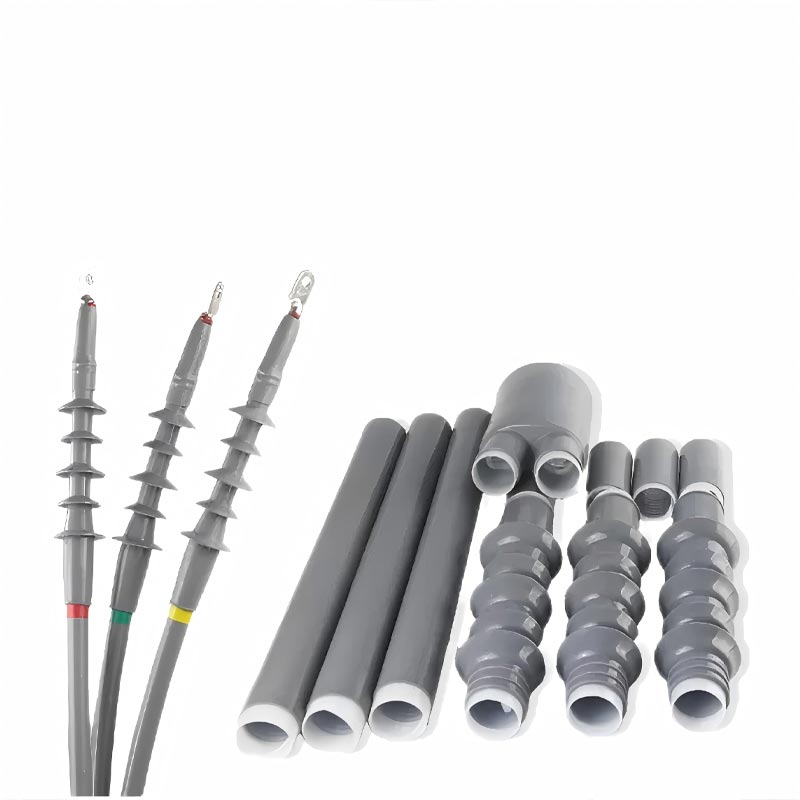

Cold Shrink Cable Termination Kit
This Cold Shrink Cable Termination Kit is an advanced, efficient and safe cable connection technology, offered by China manufacturer Taili. Through its unique physical principle, it offers excellent insulation, sealing and reliability, while significantly simplifying the installation process and enhancing operational safety.
Although its initial purchase cost may be higher than that of heat shrink products, the Cold Shrink Cable Termination Kit's advantages in installation efficiency, long-term stability and overall cost make it increasingly important in modern power engineering. You can buy this high quality product from Taili factory.
Main features and advantages
· Installation is simple: No open flames or heating tools are required. The operation is straightforward and easy to train, with a short installation time.
· High safety: No fire risk. It is particularly suitable for environments prone to fire and explosion (such as in oil, chemical and mining sites).
· Stable and reliable performance: Strong sealing ability, effectively preventing water and moisture from entering.
· Strong adaptability: Large contraction ratio, capable of adapting to different specifications of cables and slight cable deformation.
· Easy maintenance: Easy to disassemble and replace.
Cold shrink cable termination kits and heat shrink cable termination kits: What are the differences?
To better understand the cold shrink termination kit, we can refer to the following comparison table with the heat shrink termination kit:
| Cold shrink termination kit | Heat shrink termination kit | |
| Installation principle | Utilize the elastic memory effect for natural contraction | Utilizing the property of heat-shrinking of thermoplastic materials |
| Installation tools | Pull out the support bar manually without the need for heating. | Heating tools must be used. |
| Installation difficulty | Simple, fast, with low requirements for the operator's skills | It requires certain skills. Inhomogeneous heating can affect performance. |
| Safety | No open flames, low safety risks | There is a risk of fire and burns. |
| Environmental impact | Adaptable and with stable performance in low-temperature environments. | Installation becomes difficult at extremely low temperatures and the performance may be affected. |
| Cost | The unit price of the product is high, but the installation cost is low. | The unit price of the product is relatively low, but the labor cost for installation is quite high. |
| Application scenario | For situations with high safety requirements, limited space and where it is not convenient to perform welding. | Situations where cost is a concern and there are conditions for safe hot work. |
Product selection
1kV 4-core/5-core cold shrink termination kit
| Model | Cable cross section(mm²) | |
| 4-core | 5-core | |
| 4.0# | 5.0# | 10-16 |
| 4.1# | 5.1# | 25-50 |
| 4.2# | 5.2# | 70-120 |
| 4.3# | 5.3# | 150-240 |
| 4.4# | 5.4# | 300 |
11kV 1-core/3-core cold shrink indoor/outdoor termination kit
| Model | Cable cross section(mm²) | |
| 1-core | 3-core | |
| 1.1# | 3.1# | 25-50 |
| 1.2# | 3.2# | 70-120 |
| 1.3# | 3.3# | 150-240 |
| 1.4# | 3.4# | 300-400 |
24kV 1-core/3-core cold shrink indoor/outdoor termination kit
| Model | Cable cross section(mm²) | |
| 1-core | 3-core | |
| 1.1# | 3.1# | 25-50 |
| 1.2# | 3.2# | 70-120 |
| 1.3# | 3.3# | 150-240 |
| 1.4# | 3.4# | 300-400 |
36kV 1-core/3-core cold shrink indoor/outdoor termination kit
| Model | Cable cross section(mm²) | |
| 1-core | 3-core | |
| 1.1# | 3.1# | 50-95 |
| 1.2# | 3.2# | 120-185 |
| 1.3# | 3.3# | 240-400 |
